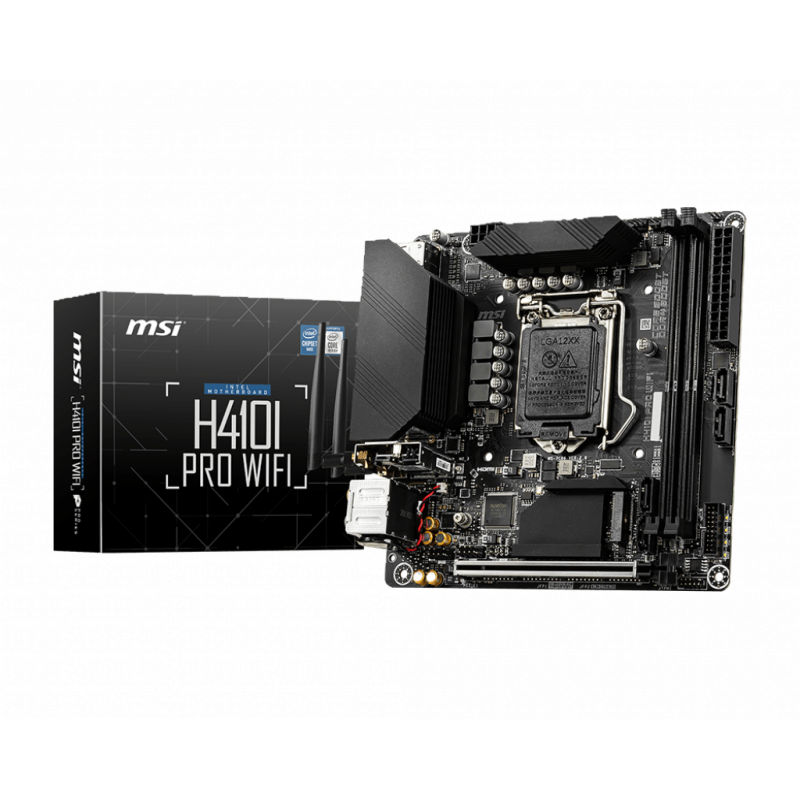

MSI H410I PRO WIFI

Техническо описание

Warranty

36 Months

LAN

1x intel 1219v gigabit lan controller

Audio

Realtek ALC1200 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

Other

Intel 3168ngw, the wireless module is pre-installed in the m.2 (key-e slot, supports 802.11 a/ b/ g/ n/ ac, supports bluetooth 4.2

I/O

Displayport, lan, wireless / bluetooth, audio connectors, usb 2.0, hdmi, usb 3.2 gen 1 5gbps type-a, optical s/pdif out

Expansion Slots

1x PCIe 3.0 x16 slot (From CPU)

OS

Support for Windows 10 64-bit

Connectors

1x 24-pin atx main power connector, 1x 8-pin atx 12v power connector, 4x sata 6gb/s connectors, 1x m.2 slot (m-key), 1x usb 3.2 gen 1 5gbps connector (supports additional 2 usb 3.2 gen 1 5gbps ports), 1x usb 2.0 connector (supports additional 2 usb 2.0 po

Memory type

2x DDR4 memory slots, support up to 64GB1, Intel Core i7/ i9, Supports up to DDR4 2933 MHz, Intel Core i5 and below, Supports up to DDR4 2666 MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Profile (XMP

Storage

Intel h410 chipset, 4x sata 6gb/s ports, 1x m.2 slot (key m), supports pcie 3.0 x4, supports sata 6gb/s, supports 2280 storage devices

Form factor

Mini-ITX Form Factor, 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz, 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz

Chipset

Intel H410 Chipset

CPU's supported

Supports Intel 10th Gen processors for LGA 1200 socket 1 2
