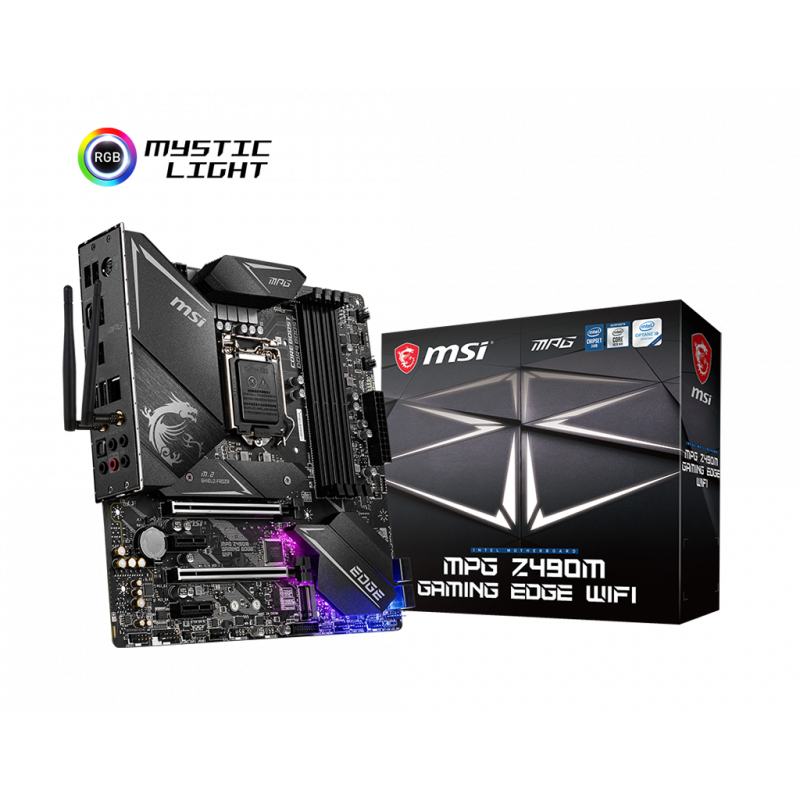

MSI MPG Z490M GAMING EDGE WIFI

Техническо описание

Warranty

36 Months

LAN

1x Realtek RTL8125B 2.5Gbps LAN controller

Audio

Realtek ALC1220 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

Other

Intel AX201, Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps, WiFi 6 Pre-Certified, Supports Bluetooth 5.1 , FIPS, FISMA, The Wireless module is pre-install in the M2 (Key-E) slot

I/O

PS/2 Combo Port, DisplayPort, USB 3.2 Gen 2 10Gbps (Type-A), LAN Port, HD Audio Connectors, USB 2.0, HDMI Port, USB 3.2 Gen 2 10Gbps (Type-C), USB 3.2 Gen 1 5Gbps (Type-A), Wi-Fi / Bluetooth, Optical S/PDIF OUT

Expansion Slots

2x pcie 3.0 x16 slots, support x16/ x0 or x8/ x8 mode, 2x pcie 3.0 x1 slots

OS

Support for Windows 10 64-bit

Connectors

1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Ge

Memory type

4x ddr4 memory slots, support up to 128gb1, supports 1r 2133/2666/2933 mhz, 1dpc 1r max speed up to 5000+ mhz, 1dpc 2r max speed up to 4500+ mhz, 2dpc 1r max speed up to 4400+ mhz, 2dpc 2r max speed up to 4000+ mhz, supports dual-channel mode, supports no

Storage

Intel z490 chipset, 4x sata 6gb/s ports 1, 2x m.2 slots (key m), supports up to pcie 3.0 x4 and sata 6gb/s, m2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1, m2_2 slot supports 2242/ 2260 /2280 storage devices2, intel optane memory ready 3

Form factor

Micro-ATX Form Factor, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz, 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, Maximum shared memory is 1GB

Chipset

Intel Z490 Chipset

CPU's supported

Supports 10th gen intel core, 11th gen intel core, pentium gold and celeron processors for lga 1200 socket 1 2 3
