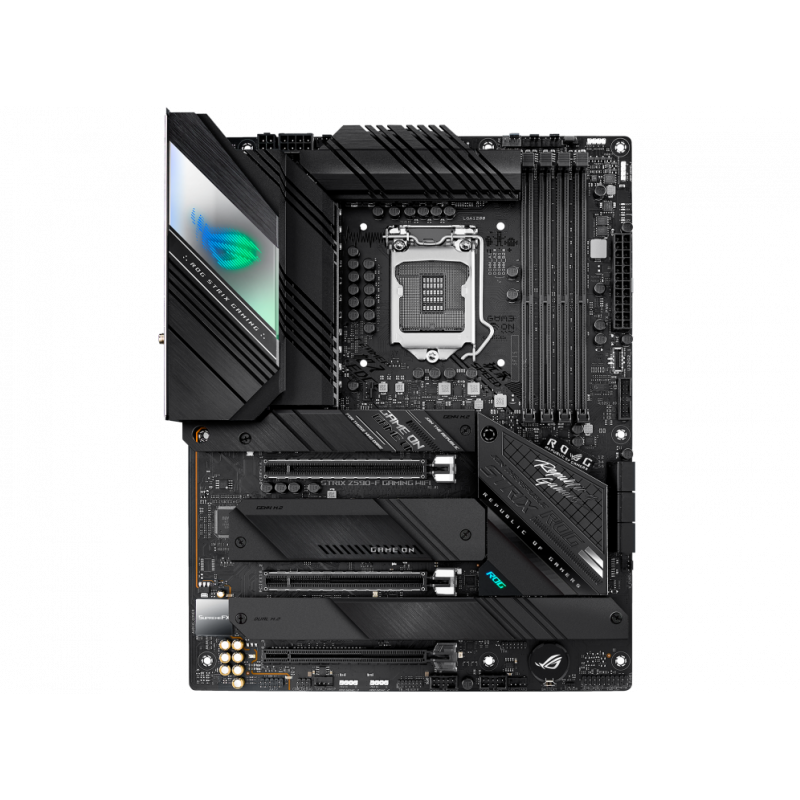

ASUS ROG STRIX Z590-F GAM WIFI

Техническо описание

Warranty

36 Months

LAN

1 x intel 2.5gb ethernet

Audio

Audio features, - supremefx shielding technology, - alc4080 + savitech sv3h712 amp, - gold-plated audio jacks, - rear optical s/pdif out port, - premium japanese audio capacitors, - audio cover

Other

Intel wi-fi 6e, 2x2 wi-fi 6e (802.11 a/b/g/n/ac/ax), supports 2.4/5/6ghz frequency band, bluetooth v5.2 hardware ready

I/O

1 x usb 3.2 gen 2x2 port (1 x usb type-c), 3 x usb 3.2 gen 2 ports (2 x type-a, 1 x usb type-c ), 4 x usb 3.2 gen 1 ports (4 x type-a), 2 x usb 2.0 ports (2 x type-a), 1 x hdmi port, 1 x displayport, 1 x intel wi-fi 6e, 1 x intel i225-v 2.5gb ethernet, 5

Expansion Slots

2 x pcie 4.0/3.0 x16 (x16, x8/x4) + 1 x pcie 3.0 x16 (max. x4), intel 11th -10th gen processors, 2 x pcie 4.0/3.0 x16 slot(s), - intel 11th support pcie 4.0 x16 or x8/x4 mode(s), - intel 10th processors support pcie 3.0 x16 or x8/x4 mode(s), intel z590 ch

OS

Windows 10 64bit

Connectors

1 x 4-pin cpu fan header, 1 x 4-pin cpu opt fan header, 1 x 4-pin aio pump header, 3 x 4-pin chassis fan headers, 1 x vrm heatsink fan header, 1 x w_pump+ header, 1 x 24-pin main power connector, 1 x 8-pin +12v power connector, 1 x 4-pin +12v power connec

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

Memory channels: 4ddr4 (dual channel), max memory size: 128gb, ddr4 5333(oc)/5133(oc)/5000(oc)/4800(oc)/4700(oc)/4600(oc)/4500(oc)/4400(oc) /4266(oc)/4133(oc)/4000(oc)/3866(oc)/3733(oc)/3600(oc)/3466(oc)/3400(oc)/3333(oc)/3200/3000/2933/2800/2666/2400/213

Storage

Supports 4 x m.2 slots and 6 x sata 6gb/s ports, intel11th -10th gen processors, m.2_1 slot (key m), type 2242/2260/2280/22110, - only intel 11th core processors support pcie 4.0 x4 mode, this slot will be disabled for other cpus, m.2_2 slot (key m), type

Form factor

Atx, 30.5cm x 24.4cm

Graphics

1 x displayport 1.4, 1 x hdmi 2.0

Chipset

Intel z590 chipset

CPU's supported

Intel socket lga1200 for 11th gen intel core processors - 10th gen intel core, pentium gold and celeron processors, supports intel 14 nm cpu, supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0
