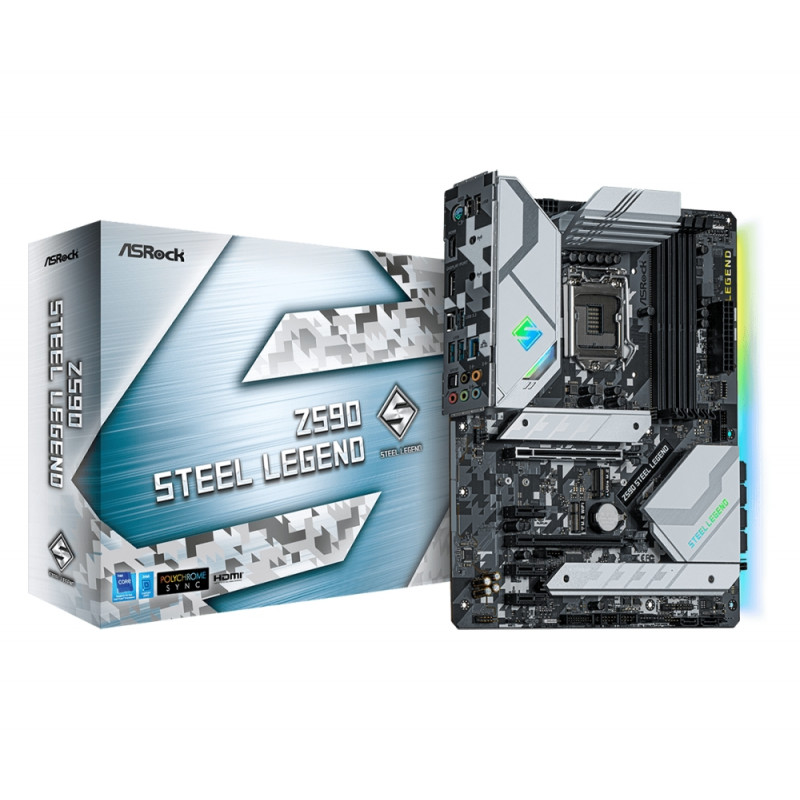

Asrock Z590 Steel Legend

Техническо описание

Процесор

Supports 10th gen intel core processors and 11th gen intel core processors (lga1200)

Софтуер

Asrock motherboard utility (a-tuning), asrock dragon 2.5g lan software, asrock polychrome sync

Серия

Steel legend

Чипсет

Intel z590

Операционна система

Microsoft windows 10 64-bit

Памет, слотове

4x ddr4 dimm slots, dual channel ddr4 memory technology, supports ecc udimm memory modules (operate in non-ecc mode), max. capacity of system memory: 128gb

Мрежа

2.5 gigabit lan 10/100/1000/2500 mb/s, dragon rtl8125bg, supports dragon 2.5g lan software, smart auto adjust bandwidth control, visual user friendly ui, supports wake-on-lan, lightning/esd protection, energy efficient ethernet 802.3az, pxe

M.2 слот

1x hyper m.2 socket (m2_1), supports m key type 2260/2280 m.2 pci express, 1x ultra m.2 socket (m2_2), supports m key type 2260/2280 m.2 sata3 6.0 gb/s, 1xultra m.2 socket (m2_3), supports m key type 2260/2280/22110 m.2 sata3 6.0 gb/s

Интерфейс

2x antenna mounting points, 1x ps/2 mouse/keyboard port, 1x hdmi port, 1x displayport 1.4, 1x optical spdif out port, 1x usb 3.2 gen2 type-a port (10 gb/s), 1x usb 3.2 gen2 type-c port (10 gb/s), 2x usb 3.2 gen1 ports, 2x usb 2.0 ports, 1x rj-45 lan port

Модел

Дънна платка

Аудио

7.1 ch hd audio (realtek alc897 audio codec), supports surge protection, gold audio jacks, 15µ gold audio connector, nahimic audio

Специални функции

Asrock usb 3.2 gen2, asrock super alloy, 2.5g lan, asrock steel slo,t asrock full coverage m.2 heatsink, asrock hyper m.2 (pcie gen4x4), asrock ultra usb power, asrock post status checker (psc), asrock full spike protection, asrock live update - app shop

BIOS

128mb ami uefi legal bios with multilingual gui support, acpi 6.0 compliant wake up events, smbios 2.7 support, cpu core/cache, cpu gt, vccsa, dram, vccio, vppm, vccin aux, vccst voltage multi-adjustment

Форм-фактор

Atx form factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz copper pcb

Конектори

1x spi tpm header, 1x power led and speaker header, 2x rgb led headers, 1x 24 pin atx power connector, 2x 8 pin 12v power, 1x front panel audio, 1x thunderbolt aic(5-pin), 2xusb 2.0 headers, 2xusb 3.2 gen1 headers, 1xfrontpanel typec usb 3.2 gen2x2 header

Слотове

4 x pci express 3.0 x16 slots, 1 x pci express 3.0 x1 slot, supports amd 3-way crossfirex and crossfirex,supports nvidia 3-way sli and sli, 1 x m.2 socket (key e), supports type 2230 wifi/bt module
