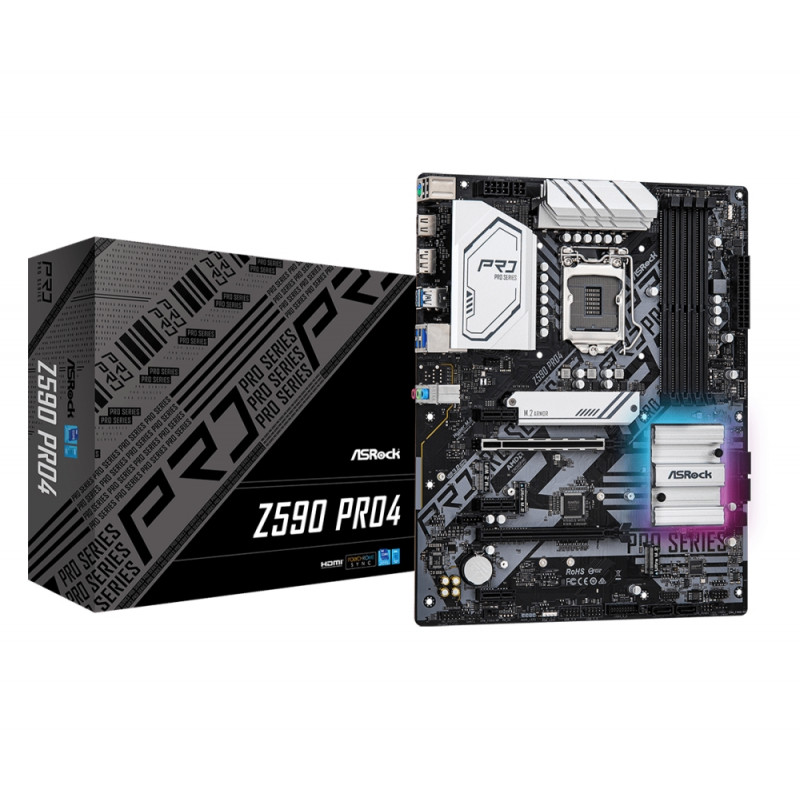

Asrock Z590 PRO4

Техническо описание

Процесор

Supports 10th gen intel core processors and 11th gen intel core processors (lga1200)

Софтуер

Asrock motherboard utility (a-tuning), asrock dragon 2.5g lan software, asrock polychrome sync

Серия

Pro4

Чипсет

Intel z590

Операционна система

Microsoft windows 10 64-bit

Памет, слотове

4x ddr4 dimm slots, max. capacity of system memory: 128gb, supports intel extreme memory profile (xmp) 2.0, dual channel ddr4 memory technology, supports ecc udimm memory modules (operate in non-ecc mode)

Мрежа

2.5 gigabit lan 10/100/1000/2500 mb/s, dragon rtl8125bg, supports dragon 2.5g lan software, smart auto adjust bandwidth control, visual user friendly ui, visual network usage statistics, supports wake-on-lan, lightning/esd protection, pxe

M.2 слот

1x hyper m.2 socket (m2_1), m key type 2260/2280 m.2 pcie (only 11th gen intel core processors), 1xultra m.2 socket (m2_2), m key type 2260/2280 m.2 sata3 6.0gb/s and m.2 pcie gen3 x4, 1xultra m.2 socket (m2_3) m key type 2260/2280/22110 m.2 sata3 6.0gb/s

Интерфейс

3x antenna mounting points, 1x ps/2 mouse/keyboard port, 1x hdmi port, 1x displayport 1.4, 2x usb 3.2 gen2 ports(10gb/s), 2x usb 3.2 gen1 ports, 2x usb 2.0 ports, 1x rj-45 lan port with led, hd audio jacks: line in / front speaker / microphone

Модел

Дънна платка

Аудио

7.1 ch hd audio (realtek alc897 audio codec), supports surge protection, nahimic audio

Специални функции

Asrock usb 3.2 gen2, asrock super alloy, 2.5g lan, asrock steel slot, asrock full coverage m.2 heatsink, asrock hyper m.2 (pcie gen4x4), asrock post status checker (psc), asrock full spike protection, asrock live update - app shop

BIOS

128mb ami uefi legal bios with multilingual gui support, acpi 6.0 compliant wake up events, smbios 2.7 support, cpu core/cache, gt, dram, vppm, vccin aux, vccio, vccst, vccsa voltage multi-adjustment

Форм-фактор

Atx form factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, solid capacitor design

Конектори

1x spi tpm header, 1x power led and speaker header, 2x rgb led headers, 2x addressable led headers, cpu fan connector(4-pin), 1x 24 pin atx power, 1x 8 pin 12v power, 1x 4 pin 12v power, 1xfront panel audio connector, 1xthunderbolt aic connector (5-pin)

Слотове

11th gen intel core: 2x pci express x16 slots (pcie2/pcie4: single at gen4x16 (pcie2), dual at gen4x16 (pcie2) / gen3x4 (pcie4)), 10th gen intel core: 2x pci express x16 slots (pcie2/pcie4: single at gen3x16 (pcie2), dual at gen3x16 (pcie2)/gen3x4 (pcie4)
