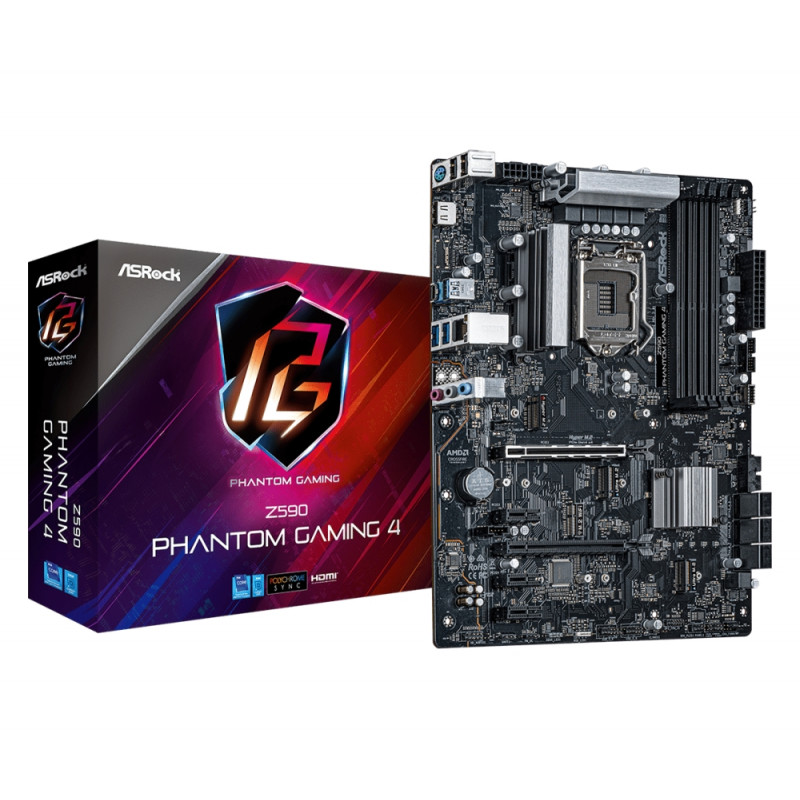

Asrock Z590 Phantom Gaming 4

Техническо описание

Процесор

Supports 10th gen intel core processors and 11th gen intel core processors (lga1200)

Софтуер

Asrock motherboard utility (phantom gaming tuning), asrock polychrome sync, asrock xfast lan

Серия

Phantom Gaming

Чипсет

Intel z590

Операционна система

Microsoft windows 10 64-bit

Памет, слотове

4x ddr4 dimm slots, dual channel ddr4 memory technology, max. capacity of system memory: 128gb, supports intel extreme memory profile (xmp) 2.0

Мрежа

Gigabit lan 10/100/1000 mb/s, giga phy intel i219v, supports wake-on-lan, supports lightning/esd protection, supports energy efficient ethernet 802.3az, supports pxe

M.2 слот

1x hyper m.2 socket(m2_1), m key type 2260/2280 m.2 pcie module up to gen4x4(64gb/s), 1x ultra m.2 socket(m2_2), m key type 2260/2280 m.2 sata3 6.0gb/s and m.2 pcie module up to gen3x4(32gb/s), 1x ultra m.2 socket(m2_3), 2260/2280/22110 m.2 sata3 6.0 gb/s

Интерфейс

1x ps/2 mouse/keyboard port, 1x hdmi port, 1x usb 3.2 gen2 type-a port, 1x usb 3.2 gen2 type-c port, 2x usb 3.2 gen1 ports, 2x usb 2.0 ports, 1x rj-45 lan port with led, hd audio jacks: line in / front speaker / microphone

Модел

Дънна платка

Аудио

7.1 ch hd audio (realtek alc897 audio codec), supports surge protection, nahimic audio

Специални функции

Asrock usb 3.2 gen2, asrock super alloy, asrock steel slot, asrock hyper m.2 (pcie gen4x4), asrock full spike protection (for all usb, audio, lan ports), asrock live update - app shop

BIOS

128mb ami uefi legal bios with multilingual gui support, acpi 6.0 compliant wake up events, smbios 2.7 support, cpu core/cache, cpu gt, dram, vccio, vccsa, vccst, vccin aux, vppm voltage multi-adjustment

Форм-фактор

Atx form factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, solid capacitor design

Конектори

1x spi tpm header, 1x power led and speaker header, 2x rgb led headers, 2x addressable led headers, 1x 24 pin atx power and 1x 8 pin 12v power connector, 1x 4 pin 12v power connector, 1x front panel audio, 2x usb2.0 headers, 2x usb 3.2 gen1 headers

Слотове

11th gen: 2x pci express x16 slots(pcie1/pcie3: single at gen4x16(pcie1), dual at gen4x16(pcie1)/gen3x4(pcie3)), 10th gen: 2x pci express x16 slots(pcie1/pcie3: single at gen3x16(pcie1), dual at gen3x16(pcie1)/gen3x4(pcie3)), 3x pci express 3.0 x1 slots
