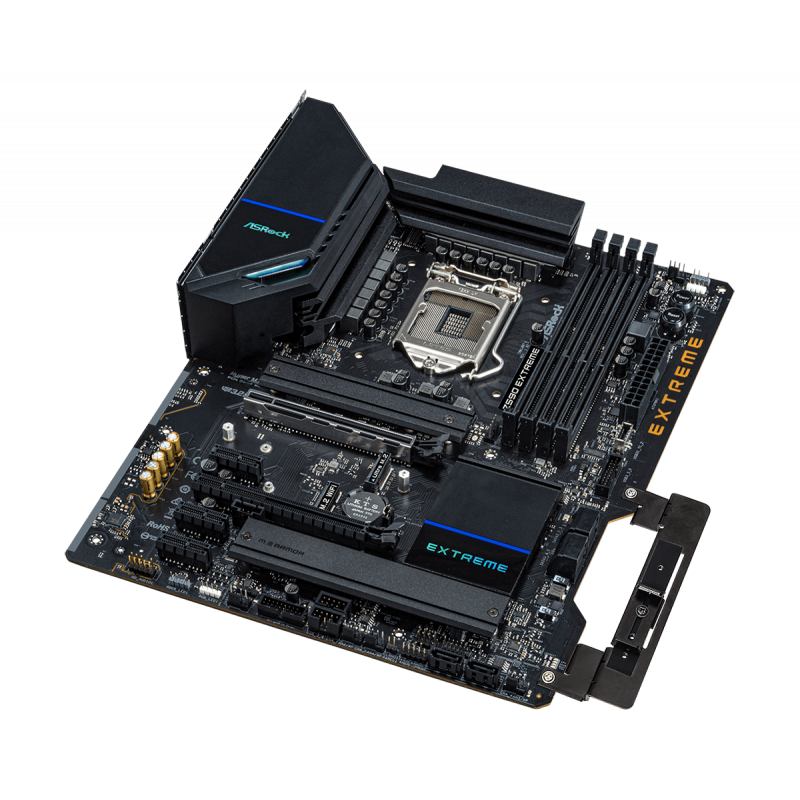

ASROCK Z590 EXTREME /LGA1200

Техническо описание

Warranty

36 Months

LAN

1 x 2.5 gigabit lan 10/100/1000/2500 mb/s (dragon rtl8125bg), - supports dragon 2.5g lan software, - smart auto adjust bandwidth control, - visual user friendly ui, - visual network usage statistics, - optimized default setting for game, browser, and stre

Audio

- 7.1 ch hd audio with content protection (realtek alc1220 audio codec), - premium blu-ray audio support, - supports surge protection, - pure power-in, - direct drive technology, - pcb isolate shielding, - impedance sensing on rear out port, - individual

I/O

- 2 x antenna mounting points, - 1 x ps/2 mouse/keyboard port, - 1 x hdmi port, - 1 x displayport 1.4, - 1 x optical spdif out port, - 1 x usb 3.2 gen2 type-a port (10 gb/s) (redriver) (supports esd protection), - 1 x usb 3.2 gen2 type-c port (10 gb/s) (r

Expansion Slots

11th gen intel core processors, - 2 x pci express x16 slots (pcie1/pcie3: single at gen4x16 (pcie1), dual at gen4x16 (pcie1) / gen3x4 (pcie3)), 10th gen intel core processors, - 2 x pci express x16 slots (pcie1/pcie3: single at gen3x16 (pcie1), dual at ge

OS

- Microsoft Windows 10 64-bit

Connectors

- 1 x spi tpm header, - 1 x power led and speaker header, - 2 x rgb led headers, - 2 x addressable led headers, - 1 x cpu fan connector (4-pin), - 1 x cpu/water pump fan connector (4-pin) (smart fan speed control), - 5 x chassis/water pump fan connectors

BIOS

- 128mb ami uefi legal bios with multilingual gui support, - acpi 6.0 compliant wake up events, - smbios 2.7 support, - cpu core/cache, cpu gt, vccsa, dram, vccio, vccio 1 2, vppm, vccin aux, vccst voltage multi-adjustment

Memory type

- dual channel ddr4 memory technology, - 4 x ddr4 dimm slots, - 11th gen intel core processors support ddr4 non-ecc, un-buffered memory up to 4800+(oc), - 10th gen intel core processors support ddr4 non-ecc, un-buffered memory up to 4666+(oc), - supports

Storage

- 6 x sata3 6.0 gb/s connectors, - 1 x hyper m.2 socket (m2_1), supports m key type 2260/2280 m.2 pci express module up to gen4x4 (64 gb/s) (socket m2_1 works with 11th gen intel core processors only), - 1 x ultra m.2 socket (m2_2), supports m key type 22

Form factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB

Graphics

- 11th gen intel core processors support intel xe graphics architecture (gen 12). 10th gen intel core processors support gen 9 graphics, - graphics, media - compute: microsoft directx 12, opengl 4.5, intel built in visuals, intel quick sync video, hybrid

Chipset

- intel z590

CPU's supported

- supports 10th gen intel core processors and 11th gen intel core processors (lga1200), - digi power design, - 14 power phase design, - supports intel turbo boost max 3.0 technology, - supports intel k-series unlocked cpus
