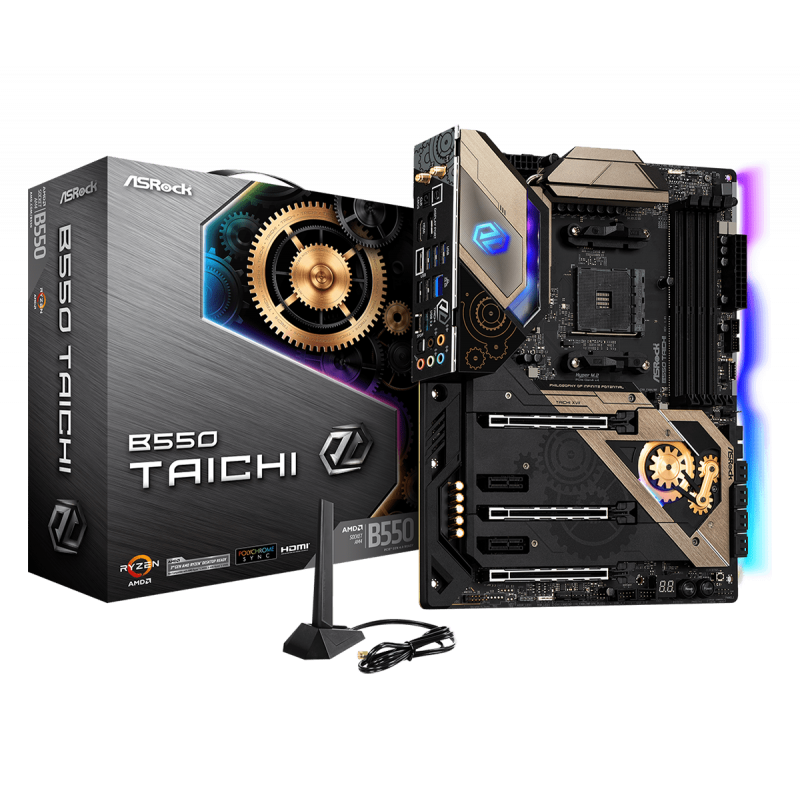

ASROCK B550 TAICHI /AM4

Техническо описание

Warranty

36 Months

LAN

- 2.5 gigabit lan 10/100/1000/2500 mb/s, - gigalan intel i225v, - supports wake-on-lan, - supports lightning/esd protection, - supports energy efficient ethernet 802.3az, - supports pxe

Audio

- 7.1 ch hd audio with content protection (realtek alc1220 audio codec), - premium blu-ray audio support, - supports surge protection, - 120db snr dac with differential amplifier, - ne5532 premium headset amplifier for front panel audio connector (support

Other

- intel 802.11ax wifi module, - supports ieee 802.11a/b/g/n/ax, - supports dual-band (2.4/5 ghz), - supports wifi6 802.11ax (2.4gbps), - 2 antennas to support 2 (transmit) x 2 (receive) diversity technology, - supports bluetooth 5.1 + high speed class ii,

I/O

- 2 x antenna ports, - 1 x hdmi port, - 1 x displayport 1.4, - 1 x optical spdif out port, - 1 x usb 3.2 gen2 type-a port (10 gb/s) (supports esd protection), - 1 x usb 3.2 gen2 type-c port (10 gb/s) (supports esd protection), - 4 x usb 3.2 gen1 ports (su

Expansion Slots

Amd ryzen series cpus (matisse), - 3 x pci express x16 slots (pcie1/pcie3/pcie5: single at gen4x16 (pcie1), dual at gen4x8 (pcie1) / gen4x8 (pcie3), triple at gen4x8 (pcie1) / gen4x8 (pcie3) / gen3x4 (pcie5)), amd ryzen series apus (renoir), - 3 x pci exp

OS

- Microsoft Windows 10 64-bit

Connectors

- 1 x power led and speaker header, - 2 x rgb led headers, - 2 x addressable led headers, - 1 x cpu fan connector (4-pin), - 1 x cpu/water pump fan connector (4-pin) (smart fan speed control), - 5 x chassis/water pump fan connectors (4-pin) (smart fan spe

BIOS

256mb ami uefi legal bios with gui support, supports "plug and play", acpi 5.1 compliance wake up events, supports jumperfree, smbios 2.3 support, cpu, cpu vddcr_soc, dram, vppm, vtt_ddr offset, cpu vdd 1.8 voltage multi-adjustment

Memory type

- dual channel ddr4 memory technology, - 4 x ddr4 dimm slots, - amd ryzen series cpus (matisse) support ddr4 4733+(oc) / 4666(oc) / 4600(oc) / 4533(oc) / 4466(oc) / 4400(oc) / 4333(oc) / 4266(oc) / 4200(oc) / 4133(oc) / 4000(oc) / 3866(oc) / 3800(oc) / 37

Storage

- 4 x sata3 6.0 gb/s connectors, support raid (raid 0, raid 1 and raid 10), ncq, ahci and hot plug, - 4 x sata3 6.0 gb/s connectors by asmedia asm1061, support ncq, ahci and hot plug, - 1 x hyper m.2 socket (m2_1), supports m key type 2242/2260/2280 m.2 p

Form factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB

Graphics

- integrated amd radeon vega series graphics in ryzen series apu, - directx 12, pixel shader 5.0, - shared memory default 2gb. max shared memory supports up to 16gb., - dual graphics output: support hdmi and displayport 1.4 ports by independent display co

Chipset

- AMD B550

CPU's supported

- supports amd am4 socket ryzen 3000, 4000 g-series and 5000 series desktop processors, - digi power design, - 16 power phase design
