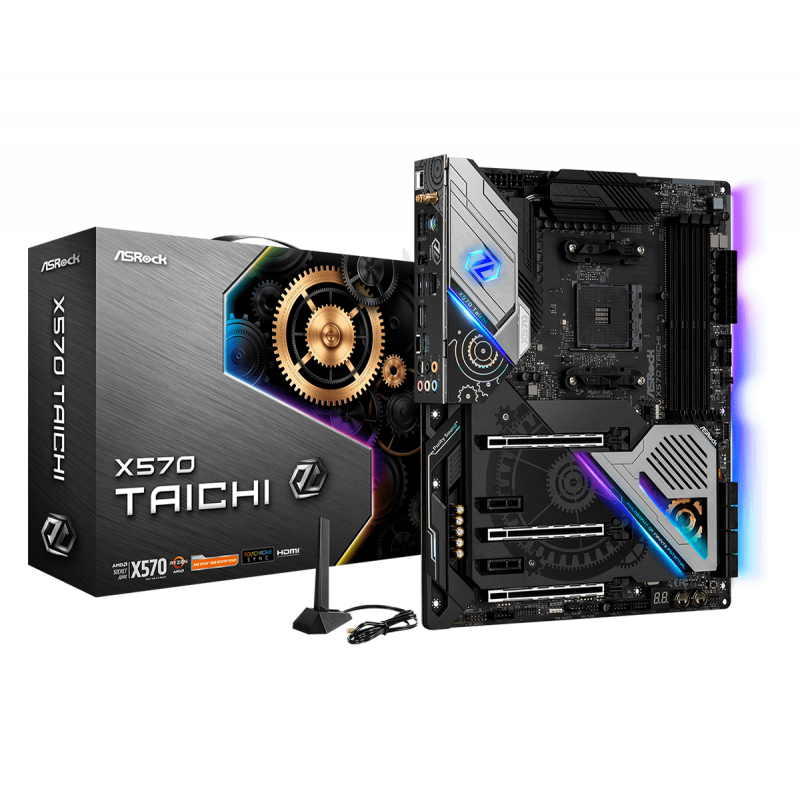

ASROCK X570 TAICHI

Техническо описание

Warranty

36 Months

LAN

- Gigabit LAN 10/100/1000 Mb/s, - GigaLAN Intel I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE

Audio

- 7.1 ch hd audio with content protection (realtek alc1220 audio codec), - premium blu-ray audio support, - supports surge protection, - supports purity sound 4, - ne5532 premium headset amplifier for front panel audio connector (supports up to 600 ohm he

Other

- intel 802.11ax wifi module, - supports ieee 802.11a/b/g/n/ax, - supports dual-band (2.4/5 ghz), - supports high speed wireless connections up to 2.4gbps, - 2 antennas to support 2 (transmit) x 2 (receive) diversity technology, - supports bluetooth 5.0 +

I/O

- 2 x antenna ports, - 1 x ps/2 mouse/keyboard port, - 1 x hdmi port, - 1 x optical spdif out port, - 1 x usb 3.2 gen2 type-a port (10 gb/s) (supports esd protection), - 1 x usb 3.2 gen2 type-c port (10 gb/s) (supports esd protection), - 6 x usb 3.2 gen1

Expansion Slots

Amd ryzen series cpus (vermeer, matisse), - 2 x pci express 4.0 x16 slots (single at x16 (pcie1), dual at x8 (pcie1) / x8 (pcie3)), amd ryzen series cpus (renoir, pinnacle ridge), - 2 x pci express 3.0 x16 slots (single at x16 (pcie1), dual at x8 (pcie1)

OS

- Microsoft Windows 10 64-bit

Connectors

- 1 x power led and speaker header, - 1 x amd fan led header, - 1 x rgb led header, - 1 x addressable led header, - 1 x cpu fan connector (4-pin), - 1 x cpu/water pump fan connector (4-pin) (smart fan speed control), - 4 x chassis/water pump fan connector

BIOS

- 256mb ami uefi legal bios with gui support, - supports "plug and play", - acpi 5.1 compliance wake up events, - supports jumperfree, - smbios 2.3 support, - cpu, vcore_nb, dram, vppm, pch 1.05v, +1.8v, vddp, voltage multi-adjustment

Memory type

Dual channel ddr4 memory technology, 4 x ddr4 dimm slots, amd ryzen series cpus (vermeer) support ddr4 4666+(oc) / 4400(oc) / 4300(oc) / 4266(oc) / 4200(oc) / 4133(oc) / 4000(oc) / 3866(oc) / 3800(oc) / 3733(oc) / 3600(oc) / 3466(oc) / 3200 / 2933 / 2667

Storage

- 8 x sata3 6.0 gb/s connectors, support raid (raid 0, raid 1 and raid 10), ncq, ahci and hot plug, - 1 x hyper m.2 socket (m2_1), supports m key type 2242/2260/2280 m.2 sata3 6.0 gb/s module and m.2 pci express module up to gen4x4 (64 gb/s) (with vermeer

Form factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB

Graphics

- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Au

Chipset

- AMD X570

CPU's supported

- supports amd am4 socket ryzen 2000, 3000, 4000 g-series and 5000 series desktop processors, - intersil digital pwm, - 14 power phase design, - capable of providing extra 300w for cpu, - supports asrock hyper bclk engine ii
