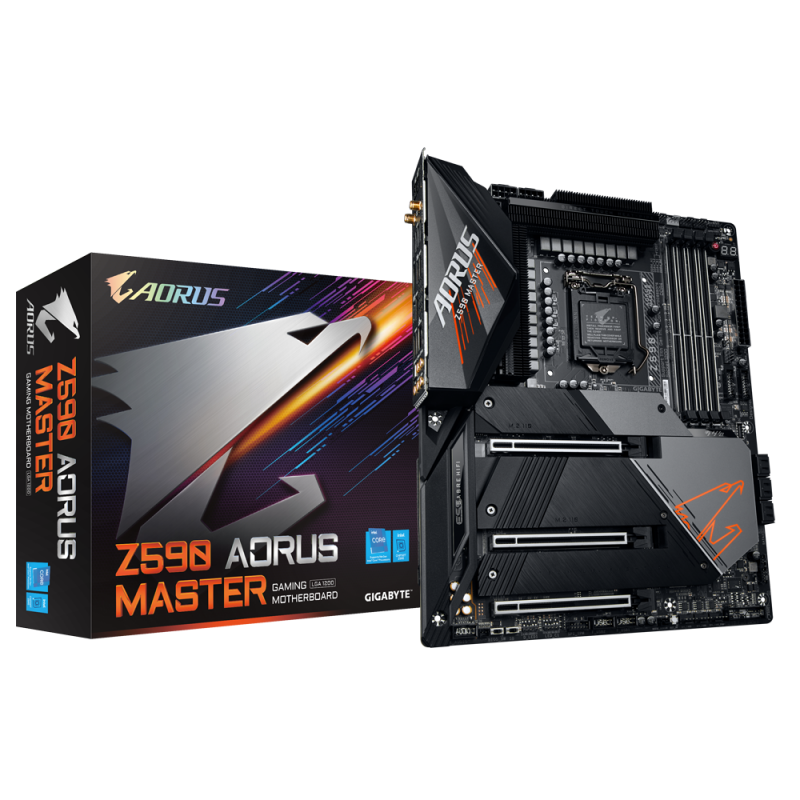

GB Z590 AORUS MASTER /LGA1200

Техническо описание

Warranty

36 Months

LAN

Aquantia 10gbe lan chip (10 gbit/5 gbit/2.5 gbit/1 gbit/100 mbit)

Audio

Realtek alc1220-vb codec,the front panel line out jack supports dsd audio., ess es9118 dac chip, support for dts:x ultra, high definition audio, 2/4/5.1/7.1-channel, support for s/pdif out

Other

Intel wi-fi 6e ax210, wifi a, b, g, n, ac, ax, supporting 2.4/5/6 ghz carrier frequency bands, bluetooth 5.2, support for 11ax 160mhz wireless standard and up to 2.4 gbps data rate,actual data rate may vary depending on environment and equipment.

I/O

1 x q-flash plus button, 1 x clear cmos button, 2 x sma antenna connectors (2t2r), 1 x displayport, 1 x usb type-c port, with usb 3.2 gen 2x2 support, 5 x usb 3.2 gen 2 type-a ports (red), 4 x usb 3.2 gen 1 ports, 1 x rj-45 port, 1 x optical s/pdif out co

Expansion Slots

1 x pci express x16 slot, running at x16 (pciex16),for optimum performance, if only one pci express graphics card is to be installed, be sure to install it in the pciex16 slot., 1 x pci express x16 slot, running at x8 (pciex8),the pciex8 slot shares bandw

OS

Support for Windows 10 64-bit

Connectors

1 x 24-pin atx main power connector, 2 x 8-pin atx 12v power connectors, 1 x cpu fan header, 1 x water cooling cpu fan header, 4 x system fan headers, 4 x system fan/water cooling pump headers, 2 x addressable led strip headers, 2 x rgb led strip headers,

BIOS

2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory type

11th generation intel core i9/i7/i5 processors: support for ddr4 5400 (o.c)/ ddr4 5333(o.c.)/ ddr4 5133(o.c.)/ddr4 5000(o.c.)/4933(o.c.)/4800(o.c.)/ 4700(o.c.)/ 4600(o.c.)/ 4500(o.c.)/ 4400(o.c.)/ 4300(o.c.)/4266(o.c.) / 4133(o.c.) / 4000(o.c.) / 3866(o.c

Storage

Cpu: 1 x m.2 connector (socket 3, m key, type 2242/2260/2280/22110 pcie 4.0 x4/x2 ssd support) (m2a_cpu),supported by 11th generation processors only., chipset: 1 x m.2 connector (socket 3, m key, type 2242/2260/2280/22110 sata and pcie 3.0 x4/x2 ssd supp

Form factor

ATX Form Factor, 30.5cm x 24.4cm

Graphics

Integrated graphics processor-intel hd graphics support: 1 x displayport, supporting a maximum resolution of 4096x2304@60 hz,support for displayport 1.2 version and hdcp 2.3

Chipset

Intel z590 express chipset

CPU's supported

Lga1200 package: 11th generation intel core i9 processors / intel core i7 processors / intel core i5 processors, 10th generation intel core i9 processors / intel core i7 processors / intel core i5 processors / intel core i3 processors/ intel pentium proce
