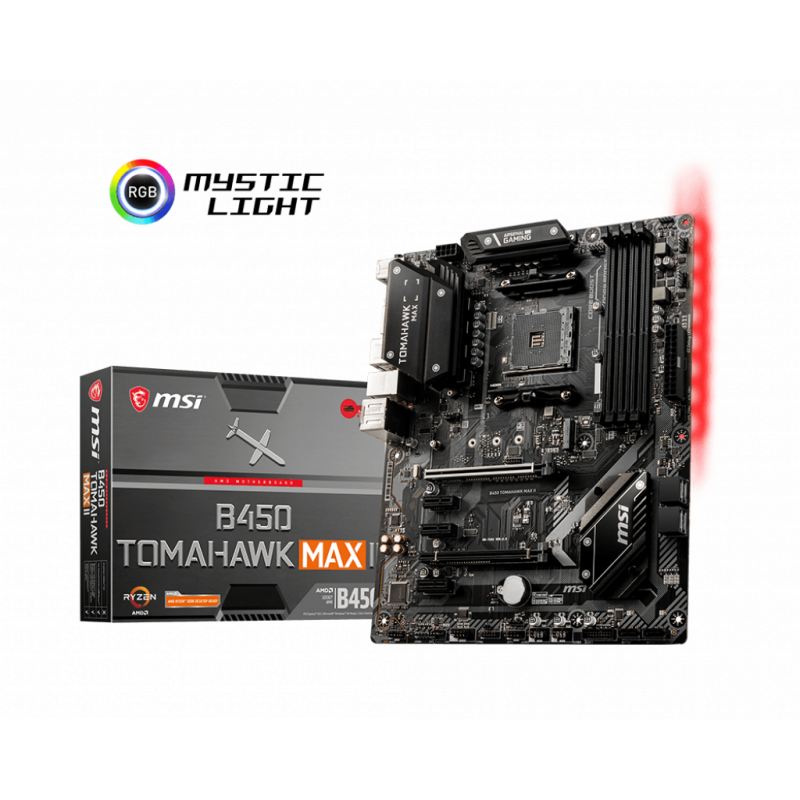

MSI B450 TOMAHAWK MAX II /AM4

Техническо описание

Warranty

36 Months

LAN

1 x Realtek 8111H Gigabit LAN controller

Audio

Realtek ALC892/ALC897 Codec, 7.1-Channel High Definition Audio

I/O

Flash bios button, ps/2 combo port, usb 3.2 gen 1 5gbps type-a ports, lan port, hd audio connectors, usb 2.0 port, dvi-d port, hdmi port, usb 3.2 gen 2 10gbps type-a+c ports

Expansion Slots

1 x pcie 3.0 x16 slot (pci_e1), 1st, 2nd and 3rd gen amd ryzen processors support x16 speed, ryzen with radeon vega graphics and 2nd gen amd ryzen with radeon graphics processors support x8 speed, 1 x pcie 2.0 x16 slot (pci_e4, supports x4 mode)1, 3 x pci

OS

Support for Windows 10 64-bit, Support for Windows 7 64-bit

Connectors

1 x 24-pin atx main power connector, 1 x 8-pin atx 12v power connector, 6 x sata 6gb/s connectors, 2 x usb 2.0 connectors (support additional 4 usb 2.0 ports), 1x usb 3.2 gen 1 5gbps connector (support additional 2 usb 3.2 gen 1 5gbps ports), 1 x 4-pin cp

Memory type

4 x ddr4 memory slots, support up to 128gb combopi 1.0.0.3-based and above bios are required., supports 1866/ 2133/ 2400/ 2667mhz (by jedec), for amd ryzen gen3 (r5/r7/r9), supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 mhz (by a-xmp oc mod

Storage

Amd cpu: 2 x sata 6gb/s ports1, 1 x m.2 slot (key m)1, supports pcie 3.0 x4 (1st, 2nd and 3rd gen amd ryzen/ ryzen with radeon vega graphics and 2nd gen amd ryzen with radeon graphics) or pcie 3.0 x2 (athlon with radeon vega graphics) and sata 6gb/s, supp

Form factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm), ATX Form Factor

Graphics

1 x dvi-d port, support a maximum resolution of 1920x1200 @60hz 12, 1 x hdmi 2.1 port, supports a maximum resolution of 4096x2160@60hz 123, maximum shared memory of 16gb

Chipset

AMD B450 Chipset

CPU's supported

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
