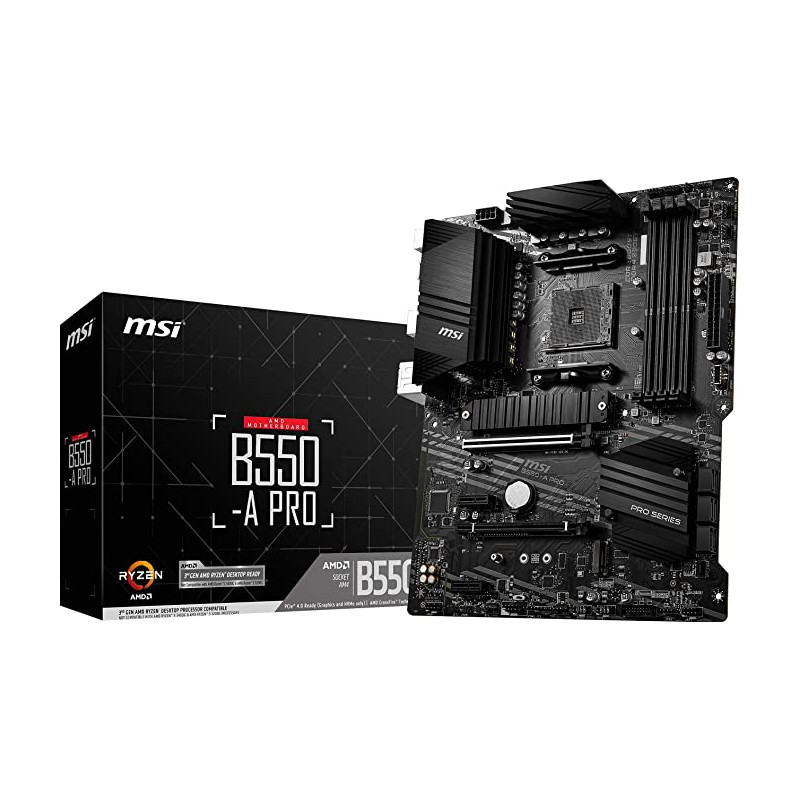

MSI B550-A PRO

Техническо описание

Warranty

36 Months

LAN

1x Realtek 8111H Gigabit LAN controller

Audio

Realtek ALC892/ALC897 Codec, 7.1-Channel High Definition Audio

I/O

Keyboard / Mouse, DisplayPort, LAN, HD Audio Connectors, Flash BIOS Button, USB 2.0, HDMI, USB 2.0, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A+C

Expansion Slots

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1, 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2, 2x PCIe 3.0 x1 slots

Connectors

1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connec

Memory type

4x DDR4 memory slots, support up to 128GB 1, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE, 1DPC 1R M

Storage

AMD B550 Chipset, 6x SATA 6Gb/s ports, 2x M.2 slots (Key M), M2_1 slot (from AMD Processor), Supports PCIe 4.0/ 3.0 x4 1, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0x4, Suppor

Form factor

ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2, 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1, Maximum shared memory of 16 GB

Chipset

AMD B550 Chipset

CPU's supported

Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update.
