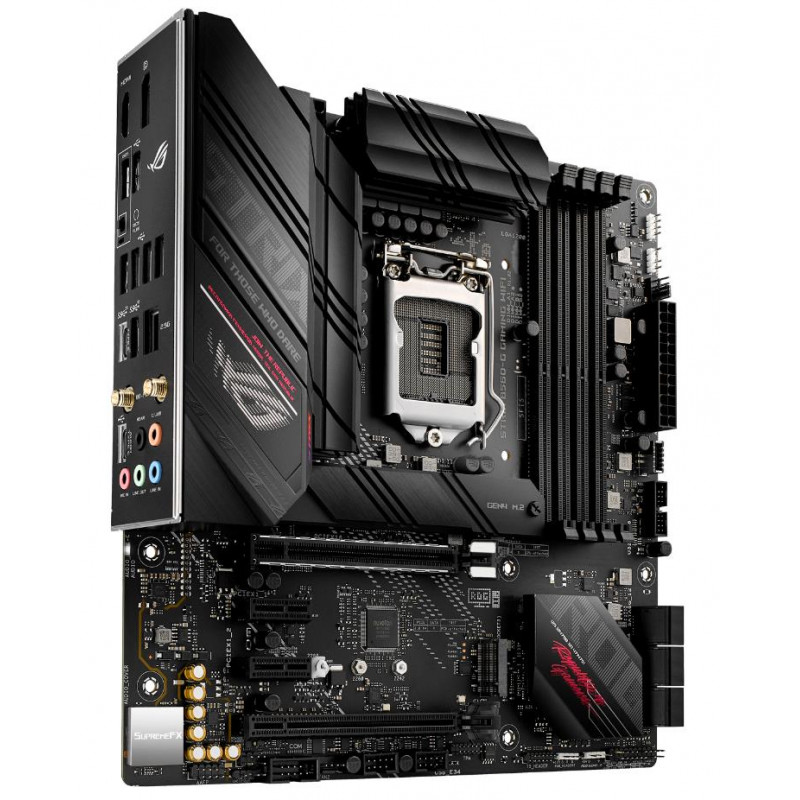

ASUS ROG STRIX B560-G GAMIN WF

Техническо описание

Warranty

36 Months

LAN

Asus languard

Audio

Rog supremefx 7.1-channel high definition audio codec s1220a, - impedance sense for front and rear headphone outputs , - supports: jack-detection, multi-streaming, front panel jack-retasking, - high quality 120 db snr stereo playback output and 113 db snr

Other

Intel wi-fi 6, 2x2 wi-fi 6 (802.11 a/b/g/n/ac/ax) , supports 2.4/5ghz frequency band, bluetooth v5.0 or later

I/O

1 x usb 3.2 gen 2x2 port (1 x usb type-c), 1 x usb 3.2 gen 2 port (1 x type-a), 7 x usb 2.0 port(s) (6 x type-a, 1 x audio usb type-c), 1 x hdmi port, 1 x displayport, 1 x asus wi-fi module , 1 x intel i225-v 2.5gb ethernet , 5 x audio jacks, 1 x bios fla

Expansion Slots

Intel 11th -10th gen processors, 1 x pcie 4.0/3.0 x16 slot(s), - intel 11th processors support pcie 4.0 x16 mode, - intel10th processors support pcie 3.0 x16 mode, intel b560 chipset, 1 x pcie 3.0 x16 slot (supports x4 mode), 2 x pcie 3.0 x1 slots

OS

Windows 10 64-bit

Connectors

1 x thunderbolt header

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory type

Ddr4 5000(oc)/4800(oc)/4600(oc)/4400(oc)/4266(oc)/4000(oc)/3733(oc)/3600(oc)/3466(oc)/3333(oc)/3200/2933/2800/2666/2400/2133 mhz non-ecc, un-buffered memory , dual channel memory architecture, supports intel extreme memory profile (xmp), optimem ii

Storage

Total supports 2 x m.2 slots and 6 x sata 6gb/s ports, intel11th gen processors, m.2_1 slot (key m), type 2242/2260/2280/22110, - only intel 11th processors support pcie 4.0 x4 mode, this slot will be disabled for other cpus., intel b560 chipset, m.2_2 sl

Form factor

Microatx 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Graphics

1 x displayport 1.4, 1 x hdmi 1.4 / 2.0

Chipset

Intel b560 chipset

CPU's supported

Intel socket lga1200 for 11th gen intel core processors - 10th gen intel core, pentium gold and celeron processors, supports intel 14 nm cpu, supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0
