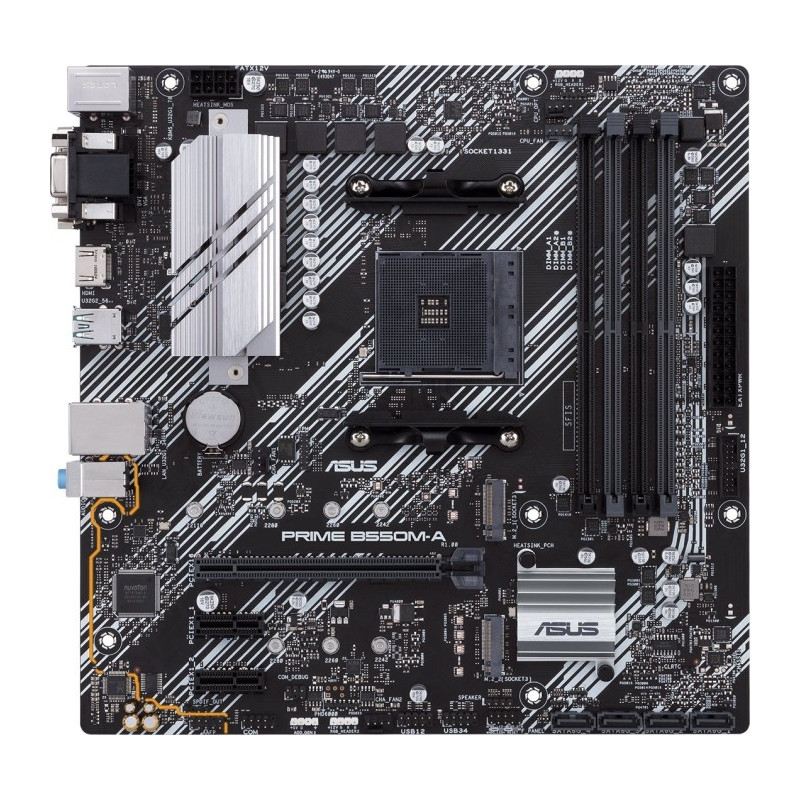

ASUS PRIME B550M-A

Техническо описание

Warranty

36 Months

LAN

Realtek RTL8111H 1Gb Ethernet

Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, Audio Feature : - LED-illuminated design, - Audio Shielding, - Dedicated audio PCB l

I/O

1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A), 4 x USB 3.2 Gen 1 (blue) Type-A, 3 x Audio jack(s)

Expansion Slots

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors, 1 x PCIe 4.0 x16 (x16 mode), AMD Ryzen 4000 G-Series Desktop Processors, 1 x PCIe 3.0 x16 (x16 mode), AMD B550 Chipset, 2 x PCIe 3.0 x1

OS

Windows 10 64-bit

Connectors

1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 conne

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

Amd ryzen 5000 series/ 3000 series desktop processors, 4 x dimm, max. 128gb, ddr4 4600(o.c)/4400(o.c)/4266(o.c.)/4133(o.c.)/4000(o.c.)/3866(o.c.)/3733(o.c.)/3600(o.c.)/3466(o.c.)/3333(o.c.)/3200/3000/2800/2666/2400/2133 mhz un-buffered memoryamd ryzen 400

Storage

Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports, AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support, AMD Ryzen 4000 G-Series Desktop

Form factor

mATX Form Factor, 9.6inch x 9.6inch ( 24.4cm x 24.4cm )

Graphics

1x D-Sub, 1x DVI-D, 1x HDMI 2.1(4K@60HZ)

Chipset

AMD B550

CPU's supported

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
