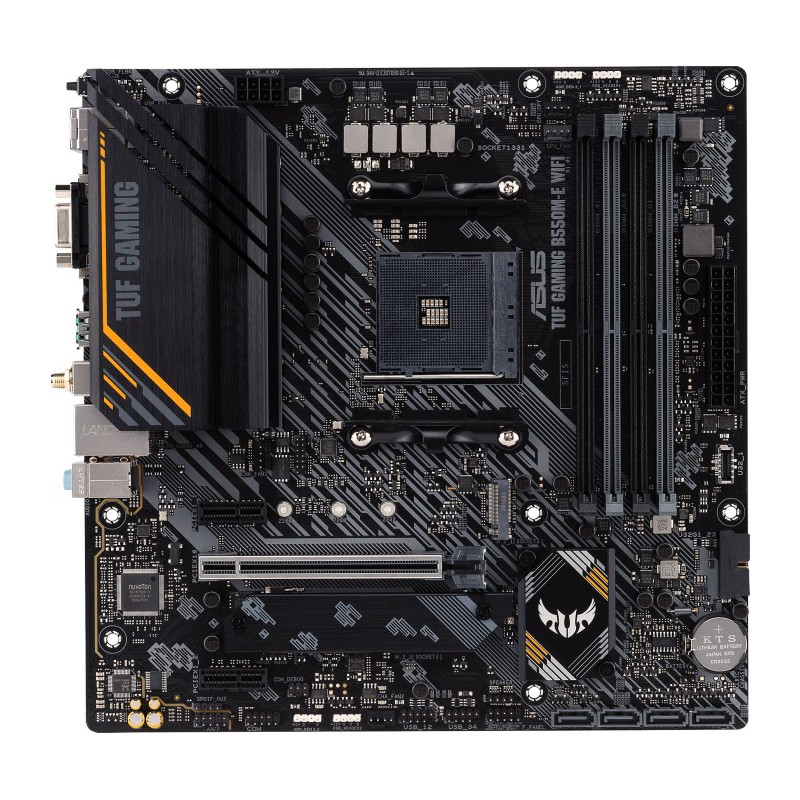

ASUS TUF GAMING B550M-E WIFI

Техническо описание

Warranty

36 Months

LAN

1 x realtek 1gb ethernet

Audio

- supports: jack-detection, multi-streaming, front panel jack-retasking, - supports up to 24-bit/192 khz playback, audio features, - audio shielding, - premium japanese audio capacitors, - dedicated audio pcb layers

Other

Intel wi-fi 6 ax200, 2x2 wi-fi 6 (802.11 a/b/g/n/ac/ax) support 1024qam/ofdma/mu-mimo, supports up to 2.4gbps max data rate, supports 2.4/5ghz dual-band, supports channel bandwidth: ht20/ht40/ht80/ht160, supports pcie interface, bluetooth v5.1

I/O

2 x usb 3.2 gen 2 ports (2 x type-a), 2 x usb 3.2 gen 1 ports (2 x type-a), 2 x usb 2.0 ports (2 x type-a), 1 x displayport, 1 x d-sub port, 1 x hdmi port, 1 x asus wi-fi module, 1 x realtek 1gb ethernet port, 3 x audio jacks, 1 x bios flashback button, 1

Expansion Slots

Amd ryzen 5000 series/ 3000 series desktop processors, 1 x pcie 4.0 x16 slot (supports x16 mode), amd ryzen 4000 g-series desktop processors, 1 x pcie 3.0 x16 slot (supports x16 mode), amd b550 chipset, 2 x pcie 3.0 x1 slots

OS

Windows 10 64-bit

Connectors

1 x 4-pin cpu fan header, 1 x 4-pin cpu opt fan header, 2 x 4-pin chassis fan headers, 1 x 24-pin main power connector, 1 x 8-pin +12v power connector, 2 x m.2 slots (key m), 4 x sata 6gb/s ports, 1 x usb 3.2 gen 1 connector (supports usb type-c), 1 x usb

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

Amd ryzen 5000 series/ 3000 series desktop processors, 4 x dimm, max. 128gb, ddr4 4600(oc)/4400(oc)/4266(oc)/4133(oc)/4000(oc)/3866(oc)/3733(oc)/3600(oc)/3466(oc)/3400(oc)/3333(oc)/3200/3000/2933/2800/2666/2400/2133 mhz, un-buffered memory, amd ryzen 4000

Storage

Supports 2 x m.2 slots and 4 x sata 6gb/s ports, amd ryzen 5000 series/ 3000 series desktop processors, m.2_1 slot (key m), type 2242/2260/2280 (supports pcie 4.0 x4 - sata modes), amd ryzen 4000 g-series desktop processors, m.2_1 slot (key m), type 2242/

Form factor

Microatx 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Graphics

1 x displayport 1.2, 1 x d-sub, 1 x hdmi 2.1 (4k@60hz)

Chipset

B550

CPU's supported

Amd ryzen 5000 series/ 4000 g-series/ 3000 series desktop processors
