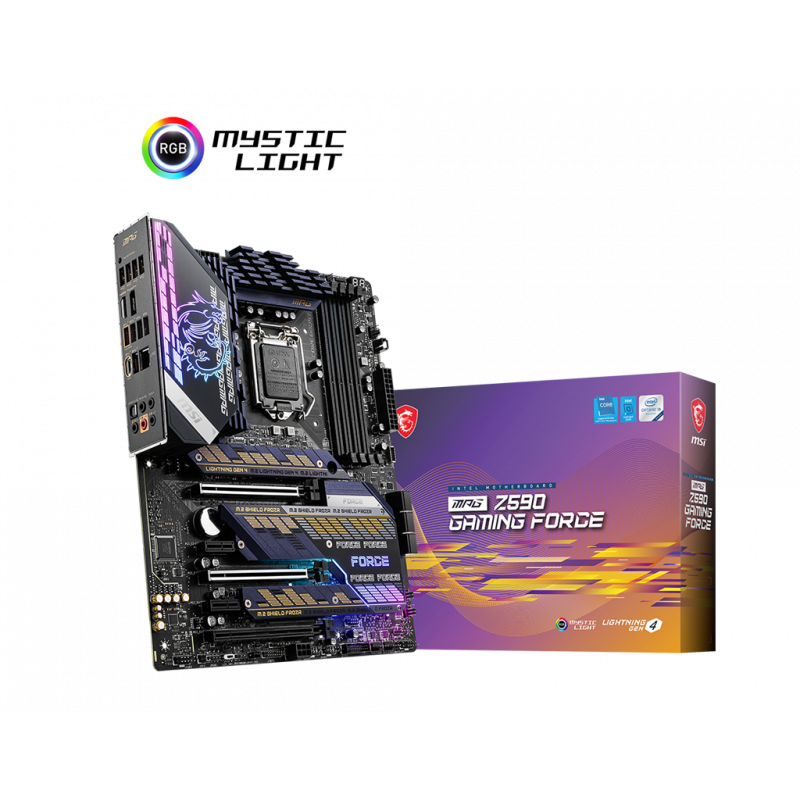

MSI MPG Z590 GAMING FORCE

Техническо описание

Warranty

36 Months

LAN

1x intel i225v 2.5gbps lan controller

Audio

Realtek alc4080 codec, 7.1-channel high definition audio

I/O

Usb 2.0, displayport, usb 3.2 gen 1 5gbps type-a, 2.5g lan, audio connectors, flash bios button, hdmi, usb 3.2 gen 2 10gbps type-a, usb 3.2 gen 2x2 20gbps type-c, optical s/pdif out

Expansion Slots

3x pcie x16 slots, support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, pci_e1 - pci_e3 slots (from cpu), support pcie 4.0 for 11th gen intel cpu, support pcie 3.0 for 10th gen intel cpu, pci_e5 slot (from z590 chipset), supports pcie 3.0, 2x pcie 3.0 x1 slots (from

OS

Support for Windows 10 64-bit

Connectors

1x 24-pin atx main power connector, 2x 8-pin atx 12v power connectors, 1x 6-pin pcie power connector, 6x sata 6gb/s connectors, 3x m.2 slots (m-key), 1x usb 3.2 gen 2 10gbps type-c port, 1x usb 3.2 gen 1 5gbps connector (supports additional 2 usb 3.2 gen

Memory type

4x ddr4 memory slots, support up to 128gb1, supports 1r 2133/ 2666/ 2933 mhz for 10th gen intel cpu (by jedec - por), supports 1r 2133/ 2666/ 2933/ 3200 mhz for 11th gen intel cpu (by jedec - por), max overclocking frequency: 1dpc 1r max speed up to 5333

Storage

6x sata 6gb/s ports (from z590 chipset), 3x m.2 slots (key m), m2_1 slot (from cpu), available only on 11th gen intel cpu, supports pcie 4.0 x4, supports 2242/ 2260/ 2280/ 22110 storage devices, m2_21 - m2_32 slot (from z590 chipset), supports pcie 3.0 x4

Form factor

ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Graphics

1x hdmi 2.0b with hdr port, supports a maximum resolution of 4k 60hz1/ 2, 1x displayport 1.4 port, supports a maximum resolution of 4k 6

Chipset

Intel z590 chipset

CPU's supported

Supports 10th gen intel core processors, 11th gen intel core processors, pentium gold and celeron processors 1 processor socket lga1200
