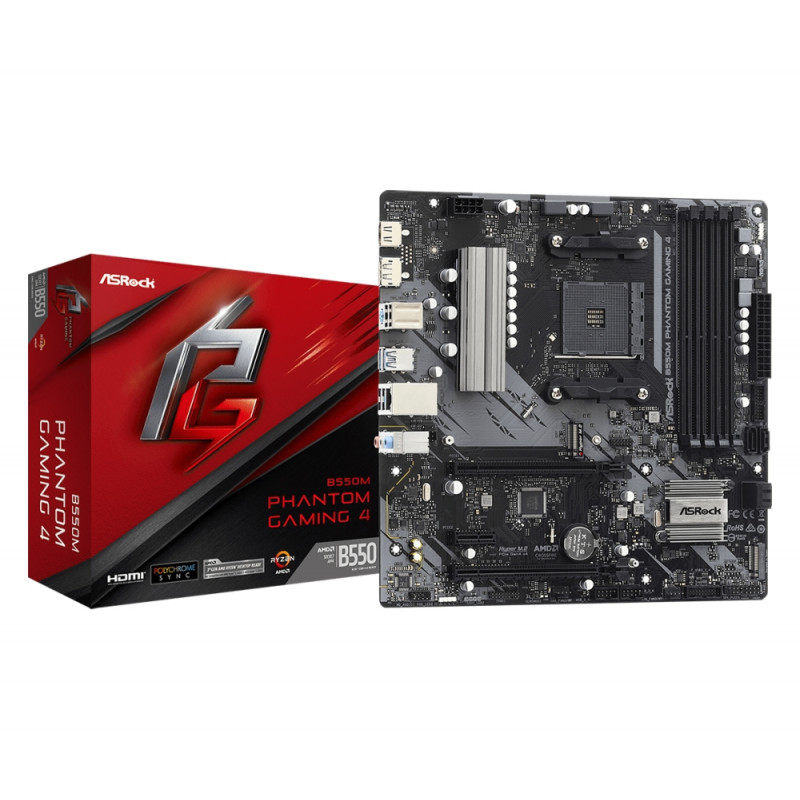

Asrock B550M Phantom Gaming 4

Техническо описание

Процесор

Supports amd am4 socket ryzen 3000, 4000 g-series and 5000 series desktop processors, digi power design, 8 power phase design

Софтуер

Asrock motherboard utility (a-tuning), asrock polychrome sync

Серия

Phantom Gaming

Чипсет

AMD B550

Операционна система

Microsoft windows 10 64-bit

Памет, слотове

4 x ddr4 dimm slots, max. capacity of system memory: 128gb, dual channel ddr4 memory technology

Мрежа

Pcie x1 gigabit lan 10/100/1000 mb/s, realtek rtl8111h, supports wake-on-lan, supports lightning/esd protection, supports energy efficient ethernet 802.3az, supports pxe

M.2 слот

1xhyper m.2 socket (m2_1), supports m key type 2280 m.2 pcie module up to gen4x4 (64 gb/s) (with matisse) or gen3x4 (32 gb/s), 1xm.2 socket(m2_2), supports m key type 2280 m.2 sata3 6.0 gb/s module and m.2 pcie module up to gen3 x2 (16 gb/s)

Други

Certificates: fcc, ce, erp/eup ready (erp/eup ready power supply is required)

Интерфейс

1x ps/2 mouse/keyboard por, 1x hdmi port, 1x displayport 1.4, 4x usb 3.2 gen1 ports (supports esd protection), 2xusb 2.0 ports (supports esd protection), 1x rj-45 lan port with led, hd audio jacks: line in / front speaker / microphone

Модел

Дънна платка

Аудио

7.1 ch hd audio (realtek alc887/897 audio codec), supports surge protection

Специални функции

Asrock super alloy, asrock hyper m.2 (pcie gen4x4), asrock full spike protection (for all usb, audio, lan ports), asrock live update - app shop

BIOS

256mb ami uefi legal bios with gui support, supports "plug and play", acpi 5.1 compliance wake up events, supports jumperfree, smbios 2.3 support, cpu, cpu vddcr_soc, dram, +1.8vsb, voltage multi-adjustment

Форм-фактор

Micro atx form factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, solid capacitor design, 2oz copper pcb

Конектори

1x spi tpm header, 1x power led and speaker header, 2x rgb led headers, 1x 24 pin atx power connector, 1x 8 pin 12v power connector, 1x front panel audio connector, 2x usb 2.0 headers, 2x usb 3.2 gen1 headers, 2x addressable led headers

Слотове

Amd ryzen series cpus (matisse)- 2 x pci express x16 slots, amd ryzen series apus- 2 x pci express x16 slots, 1x pci express 3.0 x1 slot, supports amd quad crossfirex and crossfirex
