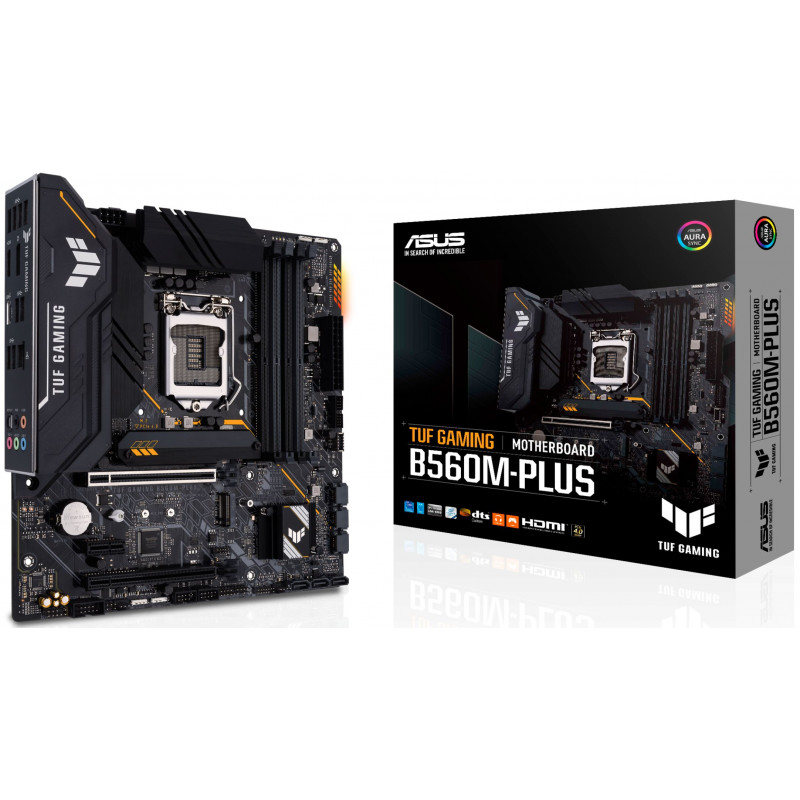

ASUS TUF GAMING B560M-PLUS

Техническо описание

Warranty

36 Months

LAN

1 x realtek 2.5gb ethernet, tuf languard

Audio

- supports: jack-detection, multi-streaming, front panel jack-retasking, - supports up to 24-bit/192 khz playback, audio features, - audio shielding, - rear optical s/pdif out port, - premium japanese audio capacitors, - dedicated audio pcb layers

I/O

2 x usb 3.2 gen 2 port(s) (2 x type-a), 3 x usb 3.2 gen 1 port(s) (2 x type-a, 1 x usb type-c), 4 x usb 2.0 port(s) (4 x type-a), 1 x displayport, 1 x hdmi port, 1 x realtek 2.5gb ethernet port, 5 x audio jacks, 1 x optical s/pdif out port

Expansion Slots

Intel 11th -10th gen processors, 1 x pcie 4.0/3.0 x16 slot(s), - intel 11th gen processors support pcie 4.0 x16, - intel10th gen processors support pcie 3.0 x16, intel b560 chipset, 1 x pcie 3.0 x16 slot (supports x4 mode), 1 x pcie 3.0 x1 slots

OS

Windows 10 64bit

Connectors

1 x tb header (for add-on tb card), 1 x 4-pin cpu fan header(s), 1 x 4-pin cpu opt fan header(s), 2 x 4-pin chassis fan header(s), 1 x 24-pin main power connector, 1 x 8-pin +12v power connector, 2 x m.2 slots (key m), 6 x sata 6gb/s ports, 1 x usb 3.2 ge

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory type

Memory channels:4ddr4 (dual channel), max memory size:128gb, ddr4 5000(oc)/4800(oc)/4600(oc)/4400(oc)/4266(oc)/4000(oc)/3733(oc)/3600(oc)/3466(oc)/3333(oc)/3200/2933/2800/2666/2400/2133 mhz non-ecc, un-buffered memory, dual channel memory architecture, su

Storage

Intel11th gen processors, m.2_1 slot (key m), type 2242/2260/2280, - only intel 11th gen processors support pcie 4.0 x4 mode, this slot will be disabled for other cpus, intel b560 chipset, m.2_2 slot (key m), type 2242/2260/2280 (supports pcie 3.0 x4 - sa

Form factor

Microatx, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Graphics

1 x displayport 1.4, 1 x hdmi 1.4 / 2.0

Chipset

B560

CPU's supported

Intel socket lga1200 for 11th gen intel core processors - 10th gen intel core, pentium gold and celeron processors, supports intel 14 nm cpu, supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0
