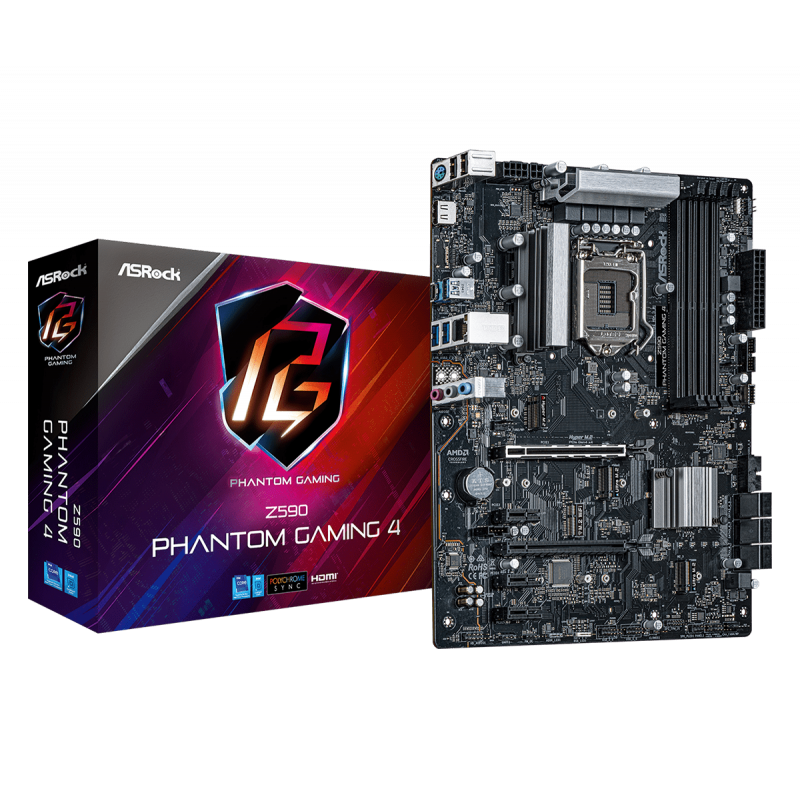

ASROCK Z590 PHANTOM GAMING 4

Техническо описание

Warranty

36 Months

LAN

- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I219V, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE

Audio

- 7.1 ch hd audio (realtek alc897 audio codec), - supports surge protection, - nahimic audio

I/O

- 1 x ps/2 mouse/keyboard port, - 1 x hdmi port, - 1 x usb 3.2 gen2 type-a port (10 gb/s) (redriver) (supports esd protection), - 1 x usb 3.2 gen2 type-c port (10 gb/s) (redriver) (supports esd protection), - 2 x usb 3.2 gen1 ports (supports esd protectio

Expansion Slots

11th gen intel core processors: - 2 x pci express x16 slots (pcie1/pcie3: single at gen4x16 (pcie1), dual at gen4x16 (pcie1) / gen3x4 (pcie3)), 10th gen intel core processors: - 2 x pci express x16 slots (pcie1/pcie3: single at gen3x16 (pcie1), dual at ge

OS

- Microsoft Windows 10 64-bit

Connectors

- 1 x spi tpm header, - 1 x power led and speaker header, - 2 x rgb led headers, - 2 x addressable led headers, - 1 x cpu fan connector (4-pin), - 1 x cpu/water pump fan connector (4-pin) (smart fan speed control), - 4 x chassis/water pump fan connectors

BIOS

- 128mb ami uefi legal bios with multilingual gui support, - acpi 6.0 compliant wake up events, - smbios 2.7 support, - cpu core/cache, cpu gt, dram, vccio, vccsa, vccst, vccin aux, vppm voltage multi-adjustment

Memory type

- dual channel ddr4 memory technology, - 4 x ddr4 dimm slots, - 11th gen intel core processors support ddr4 non-ecc, un-buffered memory up to 4800+(oc), - 10th gen intel core processors support ddr4 non-ecc, un-buffered memory up to 4666+(oc), - supports

Storage

- 6 x sata3 6.0 gb/s connectors, - 1 x hyper m.2 socket (m2_1), supports m key type 2260/2280 m.2 pci express module up to gen4x4 (64 gb/s) (socket m2_1 works with 11th gen intel core processors only), - 1 x ultra m.2 socket (m2_2), supports m key type 22

Form factor

- atx form factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - solid capacitor design

Graphics

- 11th gen intel core processors support intel xe graphics architecture (gen 12). 10th gen intel core processors support gen 9 graphics, - supports hdmi 2.0 with max. resolution up to 4k x 2k (4096x2160) @ 60hz, - supports auto lip sync, deep color (12bpc

Chipset

- intel z590

CPU's supported

- supports 10th gen intel core processors and 11th gen intel core processors (lga1200), - digi power design, - 8 power phase design, - supports intel turbo boost max 3.0 technology, - supports intel k-series unlocked cpus
