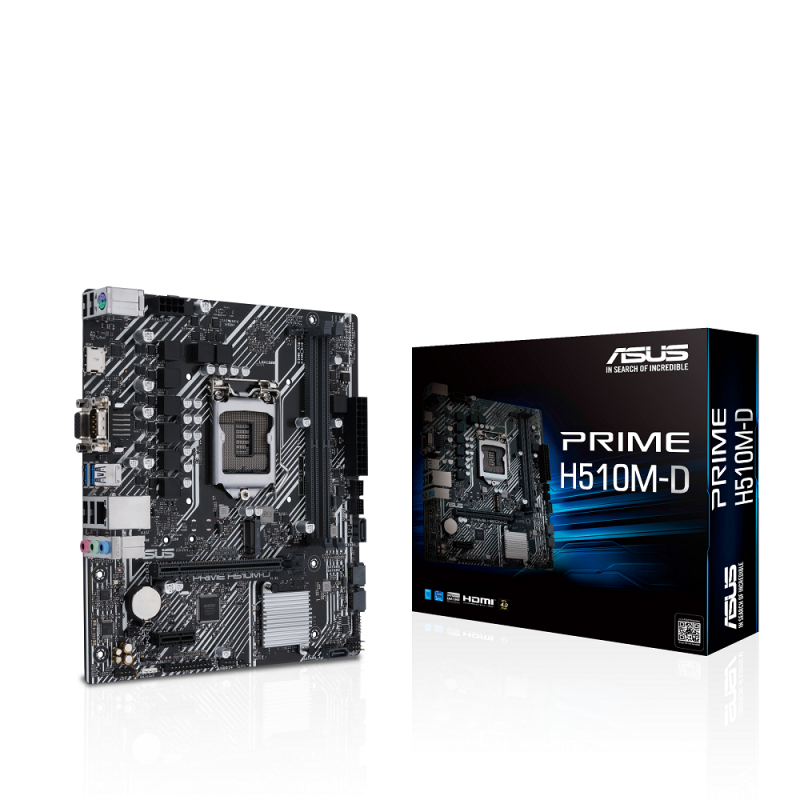

ASUS PRIME H510M-D /LGA1200
ASUS PRIME H510M-D /LGA1200
Техническо описание
- Warranty
- 36 Months
- LAN
- Asus languard
- Audio
- Realtek alc897/887 7.1 surround sound high definition audio codec, - supports: jack-detection, multi-streaming, front panel jack-retasking, - supports up to 24-bit/192 khz playback", audio features, - audio shielding, - premium japanese audio capacitors,
- I/O
- 2 x usb 3.2 gen 1 ports (2 x type-a), 4 x usb 2.0 ports (4 x type-a), 1 x d-sub port, 1 x hdmi port, 1 x intel i219-v 1gb ethernet port, 3 x audio jacks, 1 x com port, 1 x ps/2 keyboard/mouse combo port
- Expansion Slots
- Intel 11th - 10th gen processors: 1 x pcie 4.0/3.0 x16 slot, - intel 11th gen processors support pcie 4.0 x16, - intel 10th gen processors support pcie 3.0 x16, intel h510 chipset, 1 x pcie 3.0 x1 slot
- OS
- Windows 11 ready, windows 10 64bit
- Connectors
- Fan and cooling related: 1 x 4-pin cpu fan header, 1 x 4-pin chassis fan header, power related: 1 x 24-pin main power connector, 1 x 8-pin +12v power connector, storage related: 1 x m.2 slot (key m), 4 x sata 6gb/s ports, usb: 1 x usb 3.2 gen 1 header sup
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Memory type
- Ddr4 3200(oc)/2933/2800/2666/2400/2133 mhz non-ecc, un-buffered memory, dual channel memory architecture, supports intel extreme memory profile (xmp),10th gen intel core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the ma
- Storage
- Supports 1 x m.2 slot and 4 x sata 6gb/s ports, intel h510 chipset, m.2 slot (key m), type 2242/2260/2280 (supports pcie 3.0 x4 - sata modes), 4 x sata 6gb/s ports
- Graphics
- 1 x d-sub, 1 x hdmi 2.0 2.0,graphics specifications may vary between cpu types.
- Chipset
- H510
- CPU's supported
- Intel socket lga1200 for 11th gen intel core processors - 10th gen intel core, pentium gold and celeron processors, supports intel 14 nm cpu, supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0
