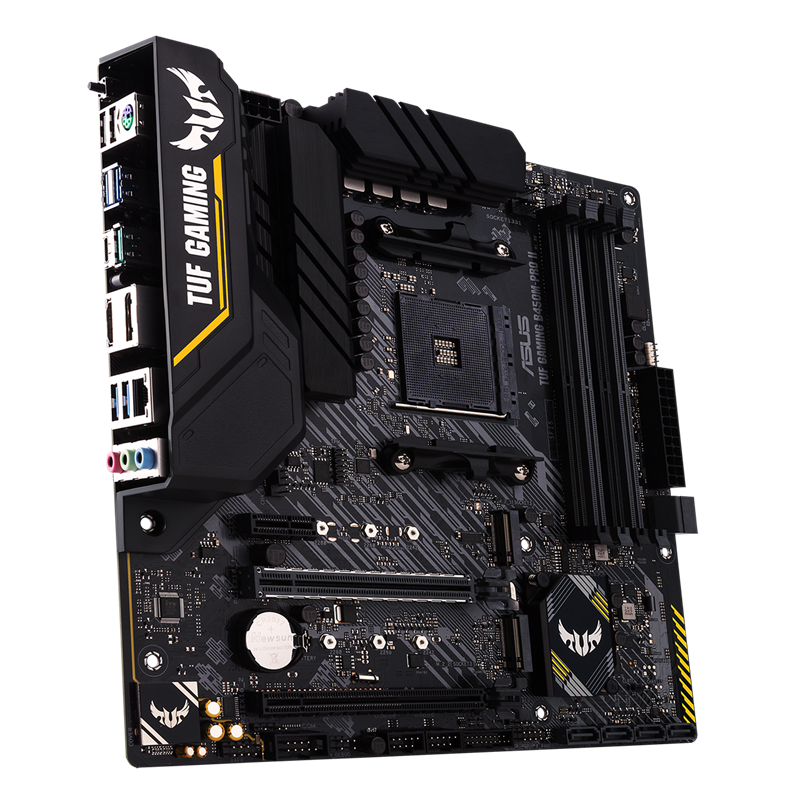

ASUS TUF GAMING B450M-PRO II

Техническо описание

Warranty

36 Months

LAN

Realtek RTL8111H 1Gb Ethernet, TUF LANGuard

Audio

Realtek alc s1200a 7.1 surround sound high definition audio codec, - supports : jack-detection, multi-streaming, front panel jack-retasking, up to 24-bit/192khz playback, audio feature : - exclusive dts custom for gaming headsets., - audio cover, - audio

I/O

1 x ps/2 keyboard/mouse combo port(s), 1 x displayport, 1 x hdmi, 1 x lan (rj45) port(s), 2 x usb 3.2 gen 2 (teal blue) (1 x type-a+1 x usb type-c), 4 x usb 3.2 gen 1 (blue) type-a, 2 x usb 2.0, 3 x audio jack(s), 1 x bios flashback button(s)

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen Processors, 1 x PCIe 3.0/2.0 x16 (x16 mode), 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors, 1 x PCIe 3.0/2.0 x16 (x8 mode), Athlon with Radeon Vega Graphics Processors, 1 x PCIe 3.0/2.0 x16 (max at x4 mode), AMD

OS

Windows 10 64-bit, windows 7 64-bit 3

Connectors

1 x cpu fan connector(s), 2 x chassis fan connector(s), 2 x aura rgb strip headers, 1 x usb 3.2 gen 1(up to 5gbps) connector(s) support(s) additional 2 usb 3.2 gen 1 port(s), 2 x usb 2.0 connector(s) support(s) additional 4 usb 2.0 port(s), 1 x m.2 socket

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O

Storage

Total supports 2 x m.2 slot(s) and 6 x sata 6gb/s ports, 3rd/2nd/1st gen amd ryzen/ 2nd and 1st gen amd ryzen with radeon vega graphics : 1 x m.2_1 socket 3, with m key, type 2242/2260/2280 (pcie 3.0 x4 and sata modes) storage devices support1, athlon wit

Form factor

mATX Form Factor, 9.6inch x 9.6inch ( 24.4cm x 24.4cm )

Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, 1x DisplayPort 1.2, 1x HDMI 2.0b

Chipset

AMD B450

CPU's supported

Amd am4 socket for amd ryzen 5000 series/ 5000 g-series/ 4000 g-series/ 3rd/2nd/1st gen amd ryzen/ 2nd and 1st gen amd ryzen with radeon vega graphics/ athlon with radeon vega graphics processors
