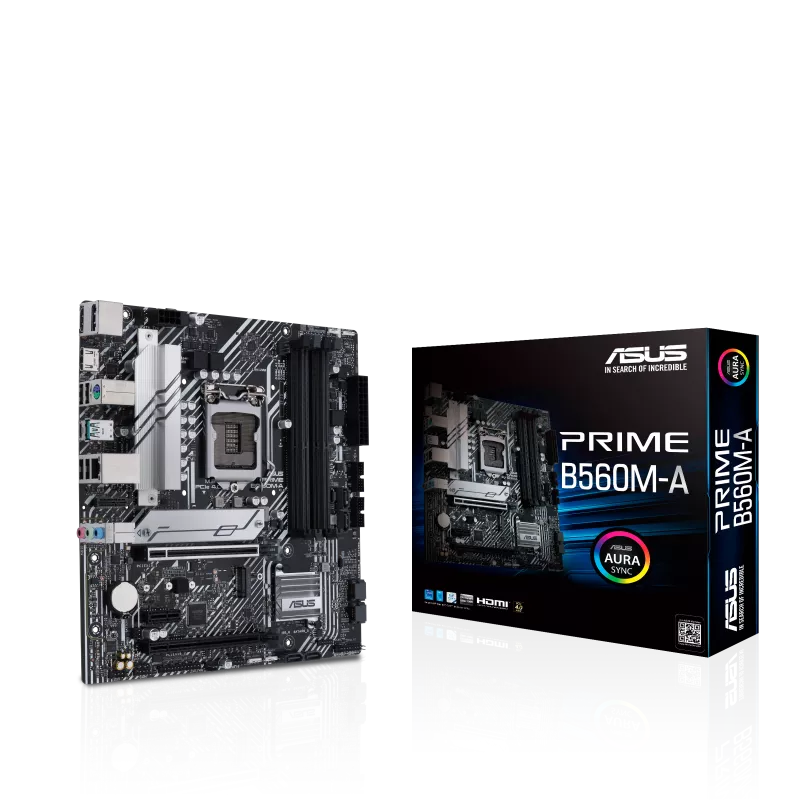

ASUS PRIME B560M-A /LGA1200

Техническо описание

Warranty

36 Months

LAN

1 x intel 1gb ethernet

Audio

- supports: jack-detection, multi-streaming, front panel jack-retasking, - supports up to 24-bit/192 khz playback", audio features, - audio shielding, - premium japanese audio capacitors, - dedicated audio pcb layers

I/O

2 x usb 3.2 gen 2 port(s) (1 x type-a, 1 x usb type-c), 4 x usb 2.0 port(s) (4 x type-a), 1 x displayport, 2 x hdmi port, 1 x intel i219-v 1gb ethernet port, 1 x v-m.2 slot (key e), 3 x audio jacks, 1 x ps/2 keyboard/mouse combo port

Expansion Slots

Intel 11th -10th gen processors, 1 x pcie 4.0/3.0 x16 slot(s), - intel 11th gen processors support pcie 4.0 x16, - intel10th gen processors support pcie 3.0 x16, intel b560 chipset, 1 x pcie 3.0 x16 slot (supports x4 mode), 1 x pcie 3.0 x1 slots

OS

Windows 10 64bit

Connectors

1 x 4-pin cpu fan header(s), 1 x 4-pin cpu opt fan header(s), 2 x 4-pin chassis fan header(s), 1 x 24-pin main power connector, 1 x 8-pin +12v power connector, 2 x m.2 slots (key m), 6 x sata 6gb/s ports, 2 x usb 3.2 gen 1 header(s) support(s) additional

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory type

Ddr4 5000(oc)/4800(oc)/4600(oc)/4400(oc)/4266(oc)/4000(oc)/3733(oc)/3600(oc)/3466(oc)/3333(oc)/3200/2933/2800/2666/2400/2133 mhz non-ecc, un-buffered memory, dual channel memory architecture, supports intel extreme memory profile (xmp), optimem ii

Storage

Supports 2 x m.2 slots and 6 x sata 6gb/s ports, intel11th gen processors, m.2_1 slot (key m), type 2242/2260/2280, - only intel 11th gen processors support pcie 4.0 x4 mode, this slot will be disabled for other cpus, intel b560 chipset, m.2_2 slot (key m

Form factor

Microatx, 24.4cm x 23.4cm

Graphics

graphics specifications may vary between cpu types.,intel 11th - 10th gen processors support displayport 1.4 with max. resolution of 4096 x 2304 @60hz. please refer to www.intel.com for any updates.,only intel 11th gen processors support hdmi 2.0 with max

Chipset

B560

CPU's supported

Intel socket lga1200 for 11th gen intel core processors - 10th gen intel core, pentium gold and celeron processors, supports intel 14 nm cpu, supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0
