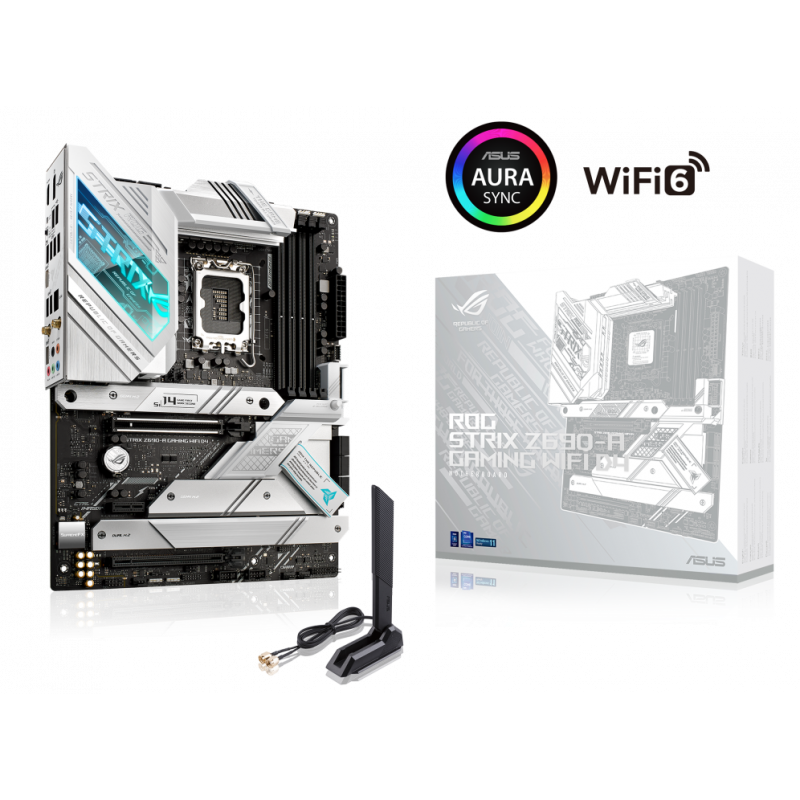

ASUS ROG-STRIX Z690-A WIFI D4

Техническо описание

Warranty

36 Months

LAN

1 x intel 2.5gb ethernet

Audio

Rog supremefx 7.1 surround sound high definition audio codec alc4080, - impedance sense for front and rear headphone outputs, - supports: jack-detection, multi-streaming, front panel jack-retasking, - high quality 120 db snr stereo playback output and 113

Other

Intel wi-fi 6, 2x2 wi-fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5ghz frequency band, bluetooth v5.2

I/O

1 x usb 3.2 gen 2x2 port (1 x usb type-c), 3 x usb 3.2 gen 2 ports (2 x type-a, 1 x usb type-c), 4 x usb 3.2 gen 1 ports (4 x type-a), 2 x usb 2.0 ports (2 x type-a) , 1 x displayport, 1 x hdmi port, 1 x wi-fi module, 1 x intel 2.5gb ethernet port, 5 x au

Expansion Slots

Intel 12th gen processors, 1 x pcie 5.0/4.0/3.0 x16 slot, intel z690 chipset, 1 x pcie 3.0 x16 slot (supports x4 mode), 1 x pcie 3.0 x1 slot

OS

Windows 11 64-bit, windows 10 64-bit

Connectors

1 x 4-pin cpu fan header , 1 x 4-pin cpu opt fan header , 1 x 4-pin aio pump header , 5 x 4-pin chassis fan headers, 1 x 24-pin main power connector, 2 x 8-pin +12v power connectors, 4 x m.2 slots (key m) , 6 x sata 6gb/s ports, 1 x usb 3.2 gen 2x2 connec

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

4 x dimm, max. 128gb, ddr4 5333(oc)/5000(oc)/4800(oc)/4700(oc)/4600(oc)/4500(oc)/4400(oc)/4266(oc)/4133(oc)/4000(oc)/3866(oc)/3733(oc)/3600(oc)/3466(oc)/3400(oc)/3333(oc)/3300(oc)/3200/3000/2933/2800/2666/2400/2133 non-ecc, un-buffered memory, dual channe

Storage

Intel 12th gen processors, m.2_1 slot (key m), type 2242/2260/2280/22110, - intel 12th gen processors support pcie 4.0 x4 mode. , intel z690 chipset, m.2_2 slot (key m), type 2242/2260/2280 (supports pcie 4.0 x4 mode) , m.2_3 slot (key m), type 2242/2260/

Form factor

Atx 30.5cm x 24.4cm

Graphics

1 x displayport, 1 x hdmi port

Chipset

Z690

CPU's supported

Intel socket lga1700 for 12th gen intel core, pentium gold and celeron processors, supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0
