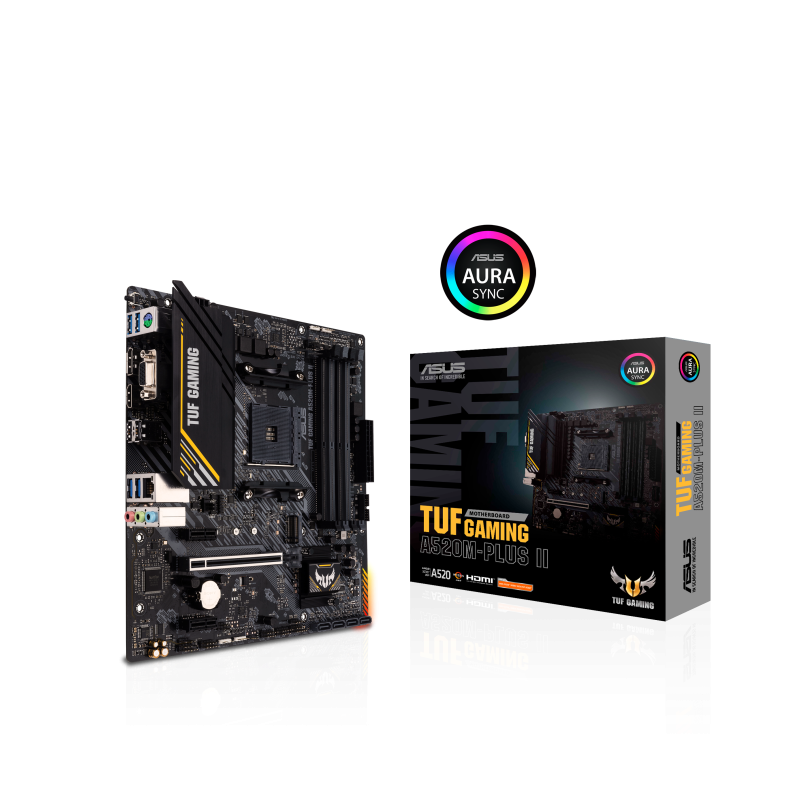

ASUS TUF GAMING A520M-PLUS II

Техническо описание

Warranty

36 Months

LAN

1 x realtek 1gb ethernet, tuf languard, 1 x realtek 1gb ethernet, tuf languard

Audio

Realtek alc887/897 7.1 surround sound high definition audio codec, - supports : jack detection, multi-streaming, front panel jack-retasking, - supports up to 24-bit/192 khz playback", audio features, - audio shielding, - premium japanese audio capacitors,

I/O

4 x usb 3.2 gen 1 ports (4 x type-a), 2 x usb 2.0 ports (2 x type-a), 1 x bios flashback button, 1 x displayport, 1 x hdmi port, 1 x d-sub, 1 x realtek 1gb ethernet port, 3 x audio jacks, 1 x ps/2 keyboard/mouse combo port

Expansion Slots

Amd ryzen 5000 series/ 5000 g-series/ 4000 g-series/ 3000 series desktop processors, 1 x pcie 3.0 x16 slot (supports x16 mode), amd a520 chipset, 2 x pcie 3.0 x1 slots

OS

Windows 10 64-bit

Connectors

1 x 4-pin cpu fan header, 2 x 4-pin chassis fan headers, 1 x 24-pin main power connector, 1 x 8-pin +12v power connector, 1 x m.2 slot (key m), 4 x sata 6gb/s ports, 1 x usb 3.2 gen 1 header supports additional 2 usb 3.2 gen 1 ports, 2 x usb 2.0 headers s

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory type

4 x dimm, max. 128gb, ddr4 4866(oc)/4800(oc)/4600(oc)/4466(oc)/4400(oc)/4266(oc)/4133(oc)/4000(oc)/3866(oc)/3733(oc)/3600(oc)/3466(oc)/3333(oc)/3200/3000/2800/2666/2400/2133 mhz, un-buffered memory, dual channel memory architecture

Storage

Total supports 1 x m.2 slot and 4 x sata, 6gb/s ports, amd ryzen 5000 series/ 4000 g-series/ 3000 series desktop processors, m.2 slot (key m), type 2242/2260/2280 (supports pcie 3.0 x4 - sata modes), amd a520 chipset, 4 x sata 6gb/s ports, support raid 0,

Form factor

Microatx, 24.4cm x 24.4cm

Graphics

1 x displayport 1.2, 1 x hdmitm 2.1(4k@60hz), 1 x d-sub

Chipset

A520

CPU's supported

Amd ryzen 5000 series/ 5000 g-series/ 4000 g-series/ 3000 series desktop processors, amd am4 socket for amd ryzen 5000 series/ 5000 g-series/ 4000 g-series/ 3000 series desktop processors
