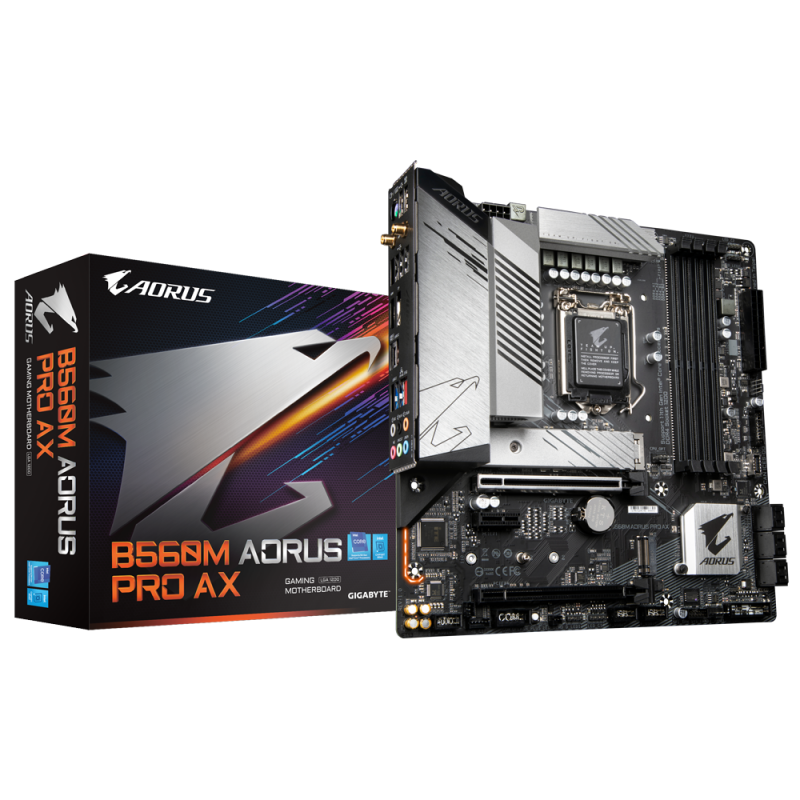

GB B560M AORUS PRO AX

Техническо описание

Warranty

36 Months

LAN

Intel2.5gbe lan chip (2.5 gbit/1 gbit/100 mbit)

Audio

Realtek audio codec, high definition audio, 2/4/5.1/7.1-channel

Other

Intel wi-fi 6 ax200, wifi a, b, g, n, ac, ax, supporting 2.4/5 ghz dual-band, bluetooth 5.1, support for 11ax 160mhz wireless standard and up to 2.4 gbps data rate

I/O

1 x ps/2 keyboard/mouse port, 1 x usb type-c port, with usb 3.2 gen2x2 support, 1 x usb 3.2 gen2 type-a port (red), 2 x usb 3.2 gen1 ports, 6 x usb 2.0/1.1 ports, 2 x sma antenna connectors (2t2r), 1 x displayport, 1 x hdmi port, 1 x rj-45 port, 6 x audio

Expansion Slots

1 x pci express x16 slot, running at x16 (pciex16),for optimum performance, if only one pci express graphics card is to be installed, be sure to install it in the pciex16 slot., (the pciex16 slot conforms to pci express 4.0 standard.), supported by 11th g

OS

Support for Windows 10 64-bit

Connectors

1 x 24-pin atx main power connector, 1 x 8-pin atx 12v power connector, 1 x cpu fan header, 1 x water cooling cpu fan header, 3 x system fan headers, 2 x addressable led strip headers, 2 x rgb led strip headers, 6 x sata 6gb/s connectors, 2 x m.2 socket 3

Memory type

11th generation intel core i9/i7/i5 processors: support for ddr4 5333(o.c.)/ ddr4 5133(o.c.)/ddr4 5000(o.c.)/4933(o.c.)/4800(o.c.)/ 4700(o.c.)/ 4600(o.c.)/ 4500(o.c.)/ 4400(o.c.)/ 4300(o.c.)/4266(o.c.) / 4133(o.c.) / 4000(o.c.) / 3866(o.c.) / 3800(o.c.) /

Storage

Cpu: 1 x m.2 connector (socket 3, m key, type 2260/2280 pcie 4.0 x4/x2 ssd support) (m2p_cpu),supported by 11th generation processors only., chipset: 1 x m.2 connector on the back of the motherboard (socket 3, m key, type 2260/2280/22110 sata and pcie 3.0

Form factor

Micro ATX Form Factor, 24.4cm x 24.4cm

Graphics

Integrated graphics processor-intel hd graphics support: 1 x hdmi port, supporting a maximum resolution of 4096x2160@30 hz,support for hdmi 1.4 version and hdcp 2.3. 1 x displayport, supporting a maximum resolution of 4096x2304@60 hz,support for displaypo

Chipset

Intel b560 express chipset

CPU's supported

11th generation intel core i9 processors / intel core i7 processors / intel core i5 processors, 10th generation intel core i9 processors / intel core i7 processors / intel core i5 processors / intel core i3 processors/ intel pentium processors / intel cel
