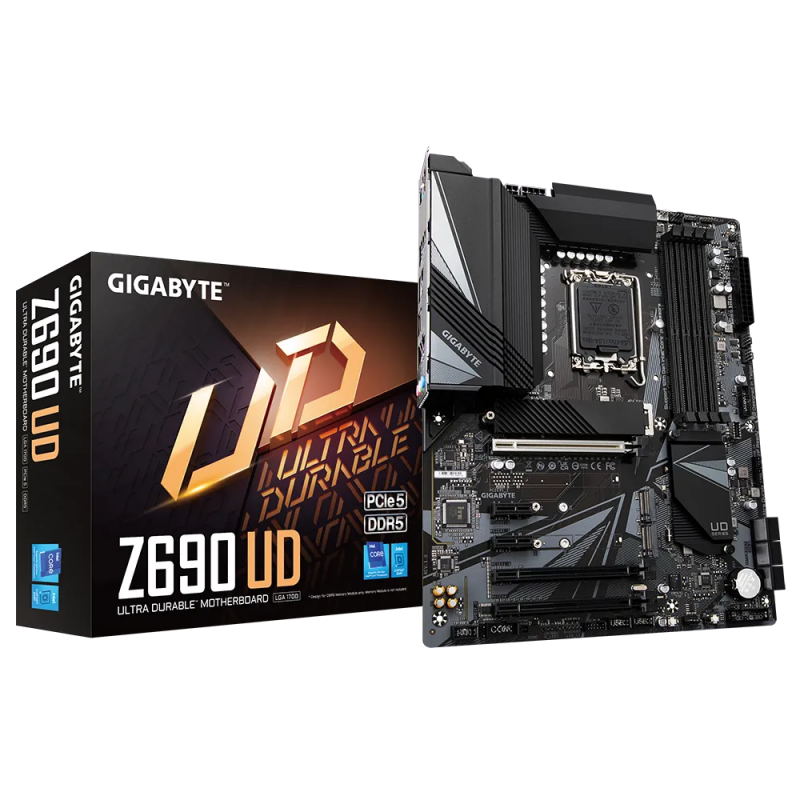

GB Z690 UD

Техническо описание

Warranty

36 Months

LAN

Realtek 2.5gbe lan chip (2.5 gbps/1 gbps/100 mbps)

Audio

Realtek audio codec, high definition audio, 2/4/5.1/7.1-channel,to configure 7.1-channel audio, you need to open the audio software and select device advanced settings -gt playback device to change the default setting first. please visit gigabytes website

I/O

1 x ps/2 keyboard/mouse port, 1 x displayport, 1 x hdmi port, 1 x usb type-c port, with usb 3.2 gen 2x2 support, 1 x usb 3.2 gen 2 type-a port (red), 4 x usb 3.2 gen 1 ports, 4 x usb 2.0/1.1 ports, 1 x rj-45 port, 3 x audio jacks

Expansion Slots

1 x pci express x16 slot, running at x16 (pciex16),for optimum performance, if only one pci express graphics card is to be installed, be sure to install it in the pciex16 slot., (the pciex16 slot conforms to pci express 5.0 standard.), 1 x pci express x16

OS

Support for windows 11 64-bit, support for windows 10 64-bit

Connectors

1 x 24-pin atx main power connector, 1 x 8-pin atx 12v power connector, 1 x 4-pin atx 12v power connector, 1 x cpu fan header, 1 x water cooling cpu fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable led strip he

BIOS

1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory type

Support for ddr5 6000(o.c.) / 5800(o.c.) / 5600(o.c.) / 5400(o.c.) / 5200(o.c.) / 4800 / 4000 mhz memory modules, 4 x ddr dimm sockets supporting up to 128 gb (32 gb single dimm capacity) of system memory, dual channel memory architecture, support for ecc

Storage

Cpu: 1 x m.2 connector (socket 3, m key, type 2260/2280/22110 pcie 4.0 x4/x2 ssd support) (m2a_cpu), chipset: 1 x m.2 connector (socket 3, m key, type 2260/2280 pcie 4.0 x4/x2 ssd support) (m2p_sb), 1 x m.2 connector (socket 3, m key, type 2260/2280 pcie

Form factor

ATX Form Factor, 30.5cm x 24.4cm

Graphics

Integrated graphics processor-intel hd graphics support: 1 x hdmi port, supporting a maximum resolution of 4096x2160@60 hz,support for hdmi 2.1 version and hdcp 2.3.,support native hdmi 2.1 tmds compatible ports., 1 x displayport, supporting a maximum res

Chipset

Intel z690 express chipset

CPU's supported

Lga1700 socket: support for 12th generation intel core i9 processors/intel core i7 processors/intel core i5 processors, l3 cache varies with cpu
