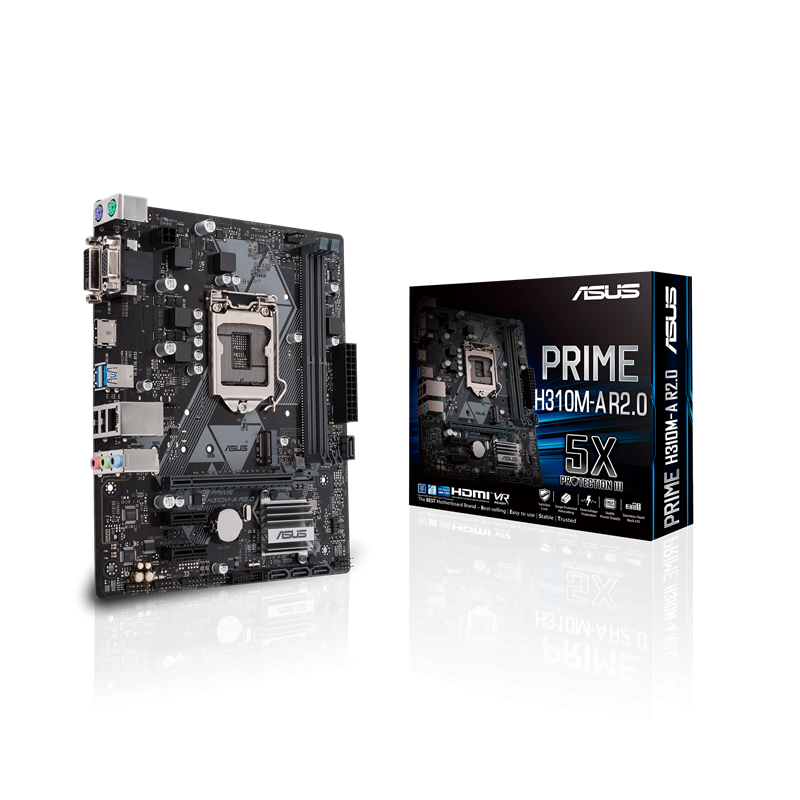

ASUS PRIME H310M-R R2.0

Техническо описание

Warranty

36 Months

LAN

Realtek RTL8111H, 1 x Gigabit LAN

Audio

Realtek alc887 8-channel high definition audio codec, - supports : jack-detection, front panel jack-retasking, audio feature : - led-illuminated design - brighten up your build with the gorgeous illuminated audio trace path., - audio shielding: ensures pr

I/O

1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps, 2 x USB 2.0, 3 x Audio jack(s)

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray), 2 x PCIe 2.0 x1

OS

Windows 10 64-bit

Connectors

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA - x2

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Memory type

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP)

Storage

Intel H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA - x2 PCIE mode)1, 4 x SATA 6Gb/s port(s), gray,

Form factor

Matx form factor, 8.9inch x 7.3inch ( 22.6cm x 18.5cm )

Graphics

Integrated graphics processor- intel hd graphics support, multi-vga output support : hdmi/dvi-d/d-sub ports, - supports hdmi 1.4b with max. resolution 4096x 2160@ 24hz / 2560x 1600@ 60hz, - supports dvi-d with max. resolution 1920x 1200@ 60 hz, - supports

Chipset

Intel H310

CPU's supported

Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0
