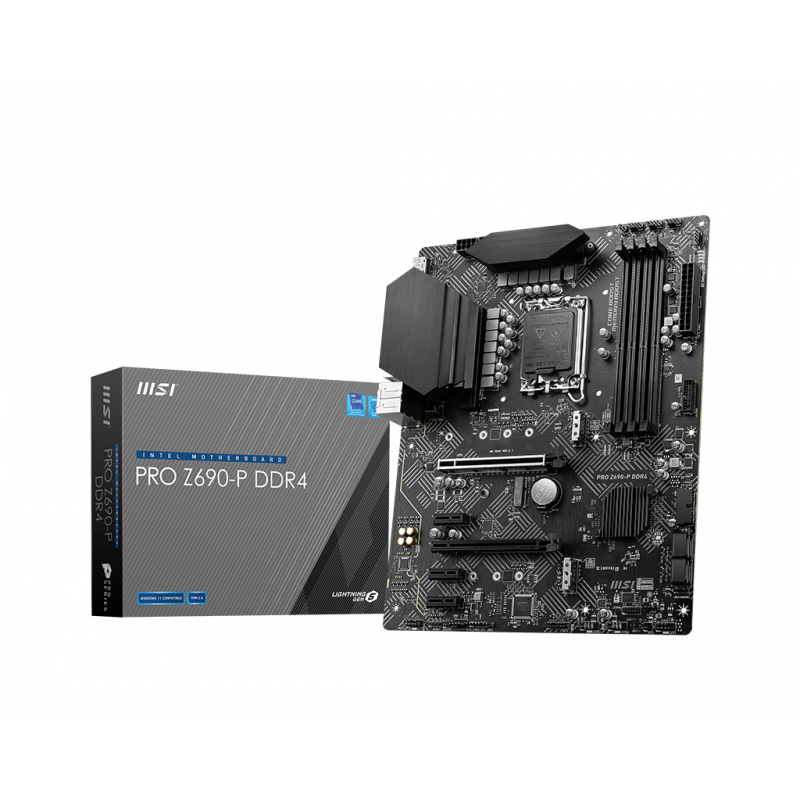

MSI PRO Z690-P DDR4 /LGA1700

Техническо описание

Warranty

36 Months

LAN

1x realtek rtl8125bg 2.5gbps lan controller

Audio

Realtekalc897 codec, 7.1-channel high definition audio, supports s/pdif output

I/O

Displayport, hdmi, usb 2.0, lan port, audio connectors, usb 3.2 gen 1 5gbps type-a, usb 3.2 gen 2x2 20gbps type-c, usb 3.2 gen 1 5gbps type-a, optical s/pdif out

Expansion Slots

2x pcie x16 slots, pci_e1 slot (from cpu), support pcie 5.0 x16, pci_e3 (from z690 chipset), support pcie 3.0 x4, 3x pcie 3.0 x1 slots (fom z690 chipset), 1x m.2 slot with e key for intel wireless-ax cnvi and pcie wifi module

Connectors

1x 24-pin atx main power connector, 1x 8-pin atx 12v power connector, 1x 4-pin atx 12v power connector, 4x sata 6gb/s connectors, 2x m.2 slots (m-key), 2x usb 3.2 gen 1 5gbps connectors (supports additional 4 usb 3.2 gen 1 5gbps ports), 2x usb 2.0 connect

Memory type

4x ddr4 memory slots, support up to 128gb 1, supports 2133/ 2666/ 3200 mhz (by jedec - por), max overclocking frequency: 1dpc 1r max speed up to 5000+ mhz, 1dpc 2r max speed up to 4600+ mhz, 2dpc 1r max speed up to 4400+ mhz, 2dpc 2r max speed up to 4000+

Storage

4x sata 6gb/s ports (from z690 chipset), 2x m.2 slots (key m), m2_1 slot (from cpu), supports pcie 4.0 x4, supports 2242/ 2260/ 2280/ 22110 storage devices, m2_2 slot (from z690 chipset), supports pcie 4.0 x4, supports sata 6gb/s, supports 2242/ 2260/ 228

Form factor

ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Graphics

1x hdmi 1.4b with hdr port, supports a maximum resolution of 4k 30hz12, 1x displayport 1.4 port, supports a maximum resolution of 4k 60hz1

Chipset

Intel z690 chipset

CPU's supported

Supports 12th gen intel core processors, pentium gold and celeron processors1, processor socket lga1700
