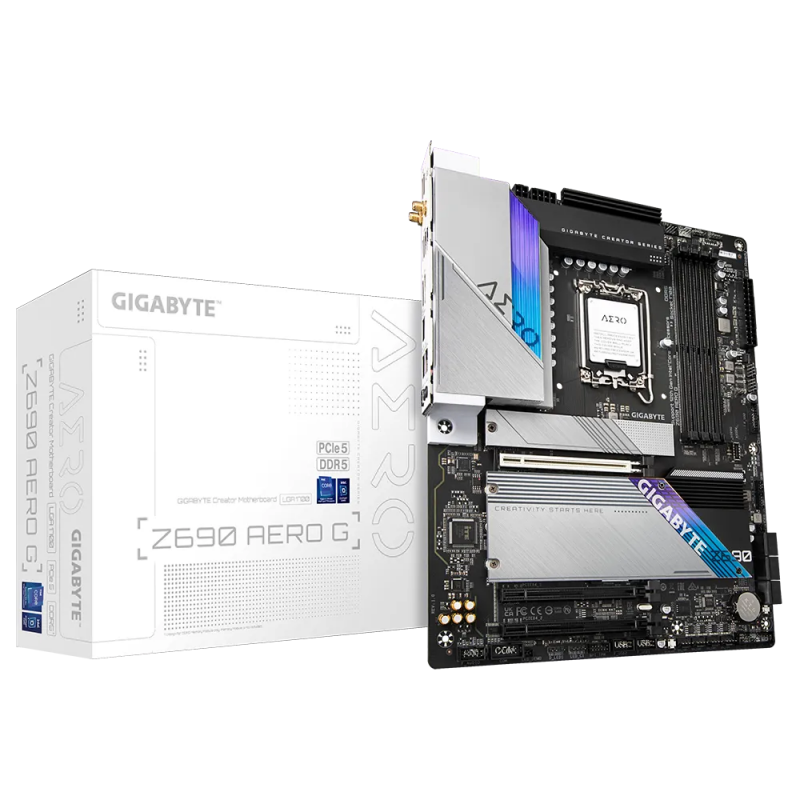

GB Z690 AERO G

Техническо описание

Warranty

36 Months

LAN

Intel 2.5gbe lan chip (2.5 gbps/1 gbps/100 mbps)

Audio

Realtek alc4080 codec, high definition audio, 2-channel analog output, support for s/pdif out, 7.1-channel digital signals

Other

Intel wi-fi 6 ax201, wifi a, b, g, n, ac, ax, supporting 2.4/5 ghz dual-band, bluetooth 5.2, support for 11ax 160mhz wireless standard and up to 2.4 gbps data rate

I/O

2 x usb 2.0/1.1 ports, 2 x sma antenna connectors (2t2r), 4 x usb 3.2 gen 1 ports, 1 x displayport in port, 1 x hdmi port, 2 x usb 3.2 gen 2 type-a ports (red), 1 x usb type-c port, with usb 3.2 gen 2x2 support, 1 x usb type-c port, with usb 3.2 gen 1 sup

Expansion Slots

1 x pci express x16 slot, running at x16 (pciex16),for optimum performance, if only one pci express graphics card is to be installed, be sure to install it in the pciex16 slot., (the pciex16 slot conforms to pci express 5.0 standard.), 2 x pci express x16

OS

Support for windows 11 64-bit, support for windows 10 64-bit

Connectors

1 x 24-pin atx main power connector, 1 x 8-pin atx 12v power connector, 1 x 4-pin atx 12v power connector, 1 x cpu fan header, 1 x water cooling cpu fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable led strip h

BIOS

1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory type

Support for ddr5 6000(o.c.) / 5800(o.c.) / 5600(o.c.) / 5400(o.c.) / 5200(o.c.) / 4800 / 4000 mhz memory modules, 4 x ddr dimm sockets supporting up to 128 gb (32 gb single dimm capacity) of system memory, dual channel memory architecture, support for ecc

Storage

Cpu: 1 x m.2 connector (socket 3, m key, type 2260/2280/22110 pcie 4.0 x4/x2 ssd support) (m2a_cpu), chipset: 2 x m.2 connectors (socket 3, m key, type 2260/2280/22110 pcie 4.0 x4/x2 ssd support) (m2p_sb, m2q_sb), 1 x m.2 connector (socket 3, m key, type

Form factor

ATX Form Factor, 30.5cm x 24.4cm

Graphics

Integrated graphics processor-intel hd graphics support: 1 x usb type-c port, supporting usb type-c and displayport video outputs and a maximum resolution of 4096x2304@60 hz,support for drawing tablets and 20v@3a of power delivery.,support for displayport

Chipset

Intel z690 express chipset

CPU's supported

Lga1700 socket: support for 12th generation intel core i9 processors/intel core i7 processors/intel core i5 processors, l3 cache varies with cpu
