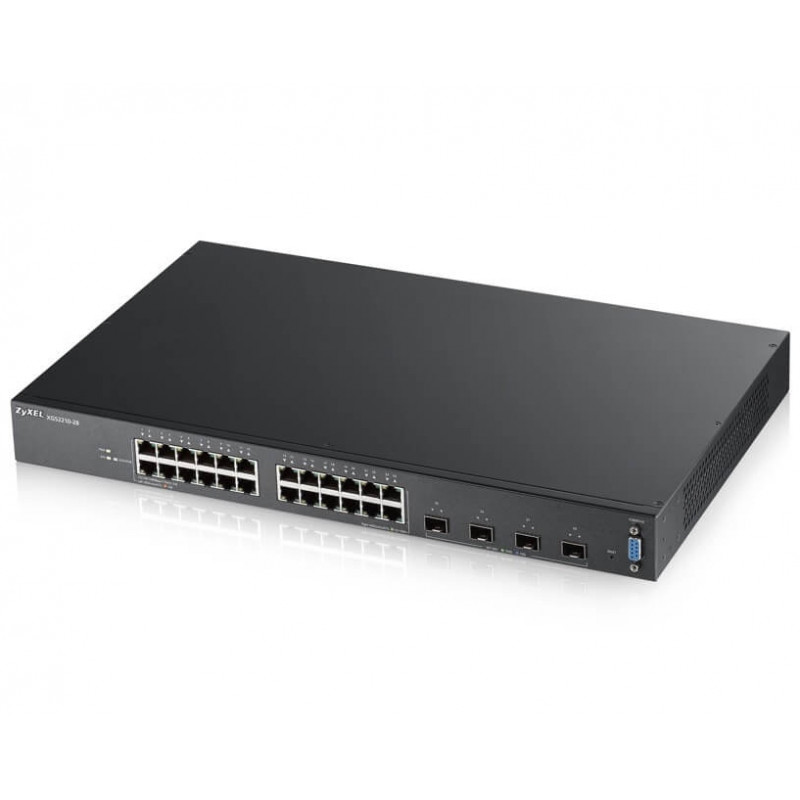

ZyXEL XGS2210-28, 24 port Gigabit L2 managed switch, 4x 10G

Техническо описание

Сигурност

Port security, layer 2 mac filtering, layer 3 ip filtering, layer 4 tcp/udp socket filtering, static mac forwarding, multiple radius servers, multiple tacacs+ servers, 802.1x vlan and 802.1p assignment by radius,login authentication, ssh, ssl, dhcp

Модел

Комутатор

Размери (Ш, Д, В), mm

441 x 270 x 45

Захранване

External power supply: 100 - 240 v ac, 50/60 hz, max. power consumption: 20w

Суич, тип

Fixed Port

Основни портове, тип

100/1000Base-T

Power Over Ethernet (PoE)

-

Uplink портове

4x 10 gbe sfp+

Свободни (10GB) слотове

-

Управление

Zyxel istacking, web interface, management through console, telnet, snmp, remote firmware upgrade by ftp/ web/tftp, cli, dhcp, snmp, rmon, syslog, display port utilization, zon utility

Stackable

Physical stacking

Fans

Fanless

Routing

Static route, ip port moving, assigned dhcp relay with specific source ip interface

Памет (Flash, RAM)

Packet buffer: 1.5 MB

Капацитет за маршрутизиране/превключване, Gbps

128 Gbps

Пропускателна способност, Mpps

95.2 Mpps

MAC адреси

16 K

VLAN (брой, стандарти)

Ieee 802.1q vlan tagging, 802.1q static vlans/dynamic vlans: 1 k/4 k,port-based/vendor id based/protocol-based/ ip subnet-based/ mac-based/ private/voice vlan, vlan ingress filtering,lacp algorithm of source/ destination ip or mac, gvrp, l2pt, mapping

QoS

8 queues per port, storm control and event log: broadcast, multicast, unknown unicast (dlf), port-based rate limiting (ingress/ egress), rate limiting per ip/tcp/udp per port, policy-based rate limiting, 802.3x, 802.1p class of service, dscp

L2 мрежови стандарти

Ieee 802.3, 802.3u, 802.3ab, 802.3z, 802.3az, 802.3x, 802.3ad, 802.1ab, 802.1d, 802.1w,802.1s, 802.1q, 802.1p, 802.1x

IPv6 functionality

Ipv6 over ethernet, ipv6 addressing architecture, dual stack, icmpv6, path mtu, minimum path mtu size of 1280, encapsulation for maximum pmtu of 1500, neighbor discovery, dhcpv6 relay, default dhcp client mode

Опция за монтаж

Rack mounting

Общ брой портове

28
