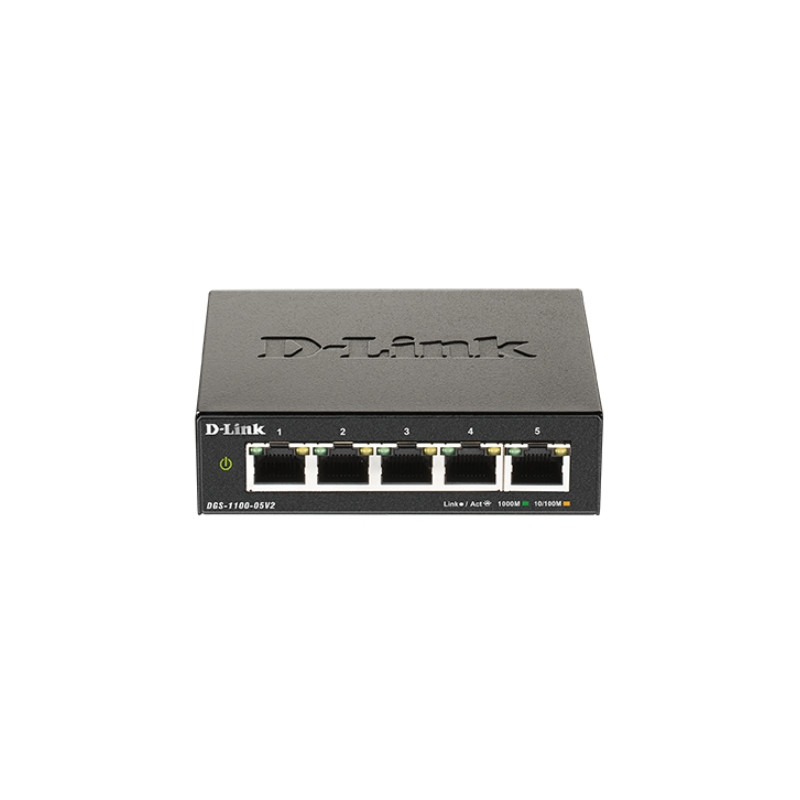

D-Link 5-Port Gigabit Smart Managed Switch

Техническо описание

Сигурност

Static MAC Address (Up to 32 entries), Broadcast/Multicast/Unknown Unicast Storm Control, Port security, Traffic segmentation

Модел

Комутатор

Размери (Ш, Д, В), mm

100.5 x 82 x 28 mm

Захранване

100 to 240 v ac, 50 to 60 hz external power adapter

Суич, тип

Fixed Port

Основни портове, тип

5 x 10/100/1000 mbps

Power Over Ethernet (PoE)

No

Uplink портове

-

Свободни (10GB) слотове

No

Управление

Web-based GUI (Supports IPv4), Client-based Utility (SmartConsole Utility)

Stackable

No

Fans

Fanless design

Routing

Layer 2 Only

Памет (Flash, RAM)

Flash memory: 2 mb, packet buffer: 1 mb

Капацитет за маршрутизиране/превключване, Gbps

10 Gbps

Пропускателна способност, Mpps

7.44 Mpps

MAC адреси

2000 MAC address table size

VLAN (брой, стандарти)

Port-based VLAN, 802.1Q tagged VLAN, Surveillance VLAN, Voice VLAN, Management VLAN, VLAN Group: Supports 32 static VLAN groups, Max. 4094 VIDs

QoS

802.1p Quality of Service, 4 queues per port, Queue Handling - Strict, Weighted Round Robin (WRR), Bandwidth Control - Port-based (Ingress/Egress, min. granularity 8 Kb/s)

L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p

L3 мрежови стандарти

-

IPv6 functionality

-

Опция за монтаж

Desktop

Общ брой портове

5
