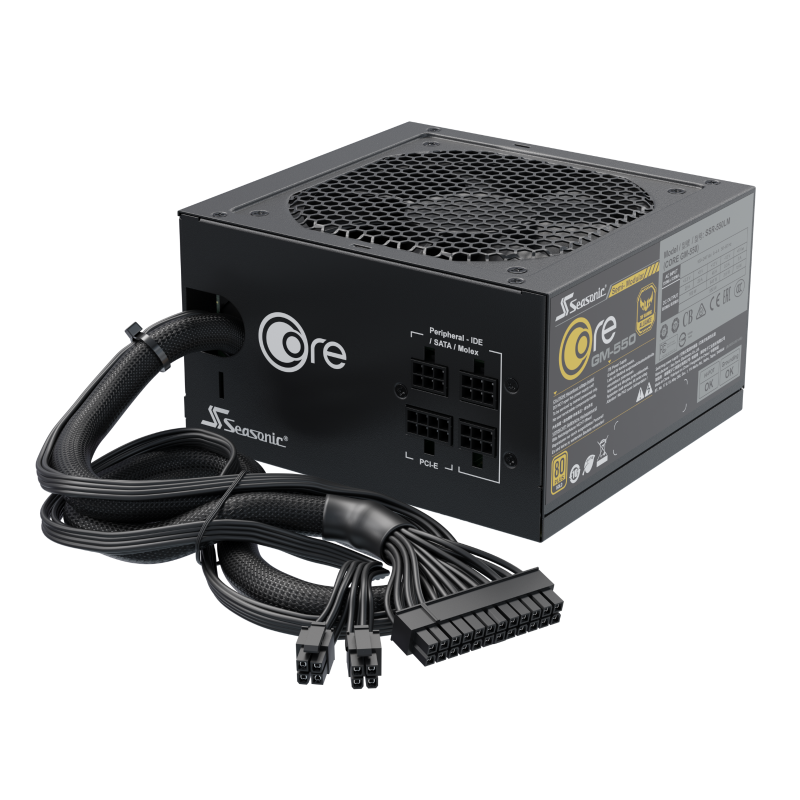

PSU SEASONIC SSR-650LM

Техническо описание

Warranty

60 Months

Features

Operating Temperature:0 - 50 C (derating from 100 - to 80 - from 40 C to 50 C), MTBF @ 25 C, excl. fan:100,000 hours, AC Input:Full Range, Protection:OPP, OVP, OCP, OTP, SCP, UVP

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

Connectors

MB (24/20 pins)-1-610mm-1, CPU-650 CPU (8/4 pins)-1-650mm-1, PCIe-(8/6 pins)750-2x-750mm-2, PCIe-(8/6 pins)750-1x-750mm-0, SATA-810-4x-810mm-1, SATA-800-4x-860mm-0, SATA-760-4x-760mm-0, SATA-700-2x-700mm-1, SATA-570-2x-570mm-0, SATA-470-2x-470mm-0, SATA-4

DC Output

650 W

AC Input

Voltage: 100 V - 240 V, Current: 9 - 4.5 A, Frequency: 50 Hz - 60 Hz

Fan Information

Fan Size:120 mm, Fan Control:Smart and Silent Fan Control, Fan Bearing:Sleeve Bearing, Life Expectancy:25,000 hours at 40 C, 15 - - 65 - RH

Cable Information

Modularity:Semi-modular, Cable type:Flat black cables

Safety and Environmental

Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, CE, FCC, Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Form factor

Intel ATX 12 V
