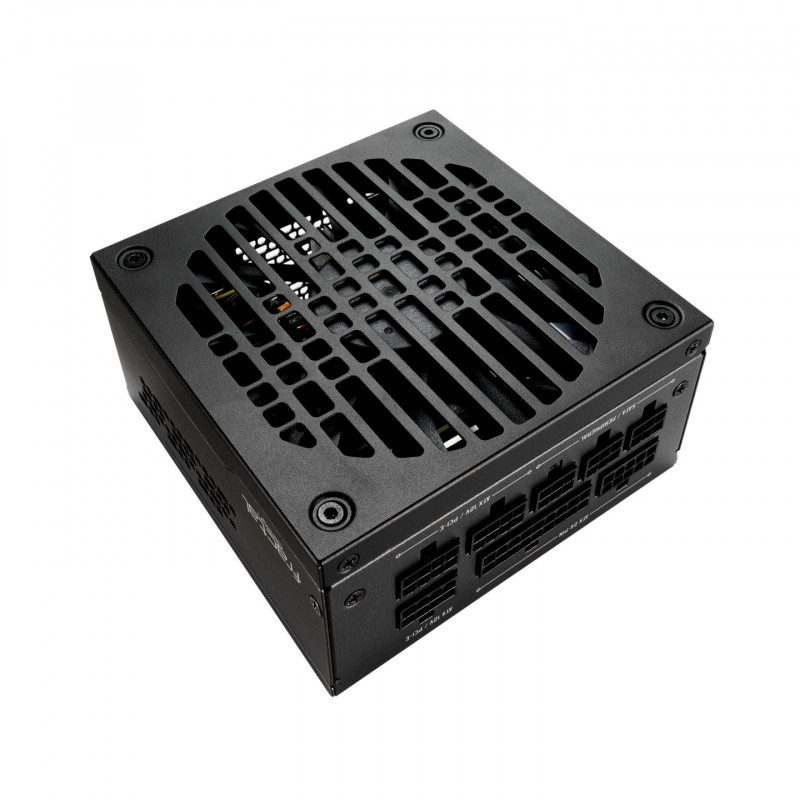

PSU FD 650W ION SFX

Техническо описание

Features

Over voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection

Connectors

ATX:1, EPS/ATX12V:1, PCIe:4, SATA:8, Peripheral:2,Cable Configuration (length in mm between connectors): ATX 24-pin:350, EPS/ATX12V 4+4 pin:400, PCIe 6+2 pin:400+100 x2, SATA:300+200+200+100 x2, Peripheral:300+200

DC Output

3.3V-20A, 5V-20A, 3.3V and 5V combined-100W, 12V-54A, -12V/0.3A, +5Vsb/3A, Total Power:650W

AC Input

Input voltage:100-240V AC, Input frequency:50-60 Hz, Input current:8A/4A (650G)

Fan Information

Slim (15 mm) FDB bearing 120 mm fan,Maximum operating temperature (full load):40C - Maximum 80- load at 50C, Semi-passive operation:Yes (Zero RPM), Capacitors:105C Japanese Polymer, Life expectancy (MTBF) at max output load:100,000 hour

Cable Information

Fully modular,Modular 24-pin: Braided sleeve UltraFlex™ wire - Others: Flat UltraFlex™ wire

Safety and Environmental

Standby efficiency:ErP 2013 (-lt0.45W @230 VAC, 45 mA load on +5Vsb), Sleep State Compliance:C6/C7, Approvals - Certifications:CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

Form factor

SFX-L
