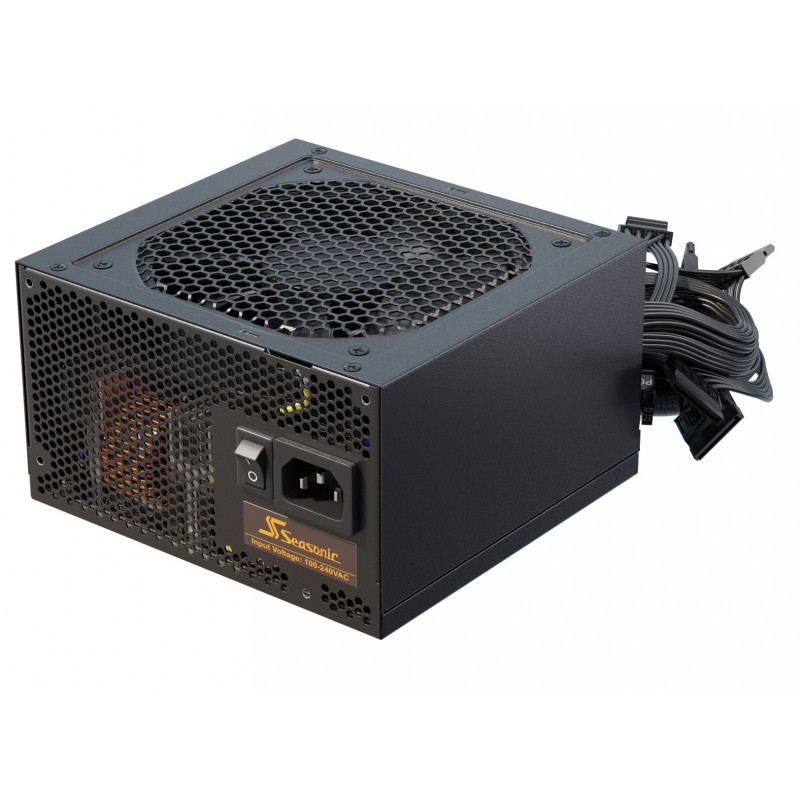

PSU SEASONIC B12 BC-650 BRONZE

Техническо описание

Warranty

60 Months

Features

Operating temperature:0 - 50 c (derating from 100 - to 80 - from 40 c to 50 c), mtbf @ 25 c, excl. fan:100,000 hours, ac input:full range, protection:opp, ovp, ocp, scp

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

Connectors

Mb-610 mb (24/20 pins):1/550/1, cpu-650 cpu (8/4 pins):1/600/1, pcie-750-2x:pcie (8/6 pins):2/700/2, pcie-750-1x:pcie (8/6 pins):1/750/0, sata-810-4x-90 sata:4/810/0, sata-800-4x-180 sata:4/860/0, sata-760-4x-90 sata:4/760 /0, ata-690-3x sata:3/690/1, sat

DC Output

Rail:+3.3 v/+5 v/+12 v/-12 v/+5 vsb, maximum power:15 a/15 a/54 a/0.3 a/2.5 a, 100 w/648 w/3.6 w/12.5 w, total continuous power:650 w

AC Input

Voltage: 100 v - 240 v, current: 10 a max., frequency: 50 hz - 60 hz

Fan Information

Fan Size:120 mm, Fan Control:Smart and Silent Fan Control, Fan Bearing:Sleeve Bearing, Life Expectancy:25,000 hours at 40 C, 15 - - 65 - RH

Cable Information

Modularity:fixed cables,cable type:flat black cables

Safety and Environmental

Safety and emc:ctuvus, tuv, cb, ccc, bsmi, ce, fcc,environmental compliance:energy star, rohs, weee, erp lot 6, reach

Form factor

Intel ATX 12 V
