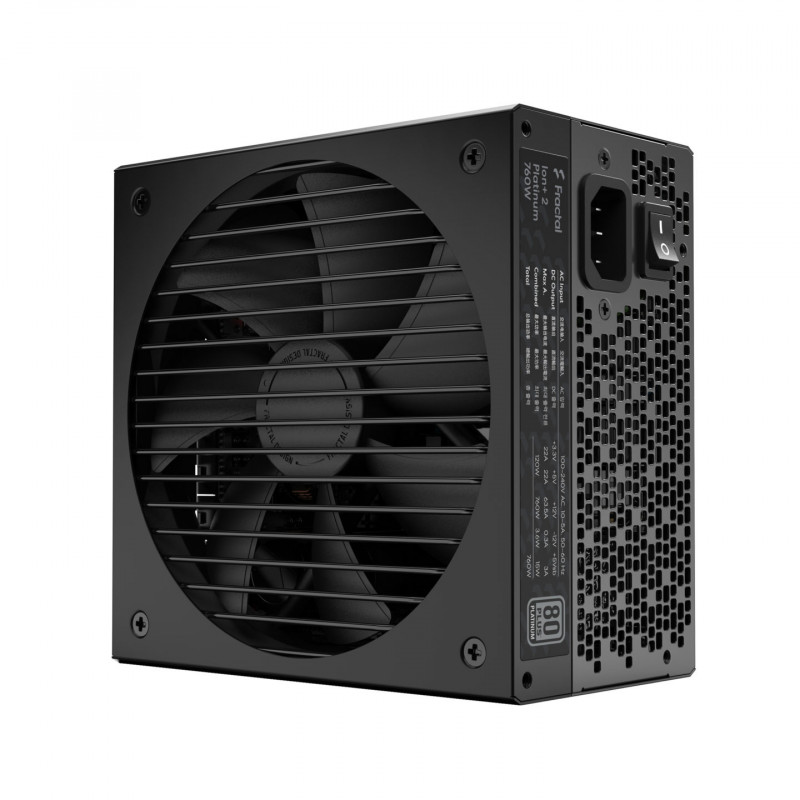

PSU FD ION+2 PLATINUM 760W ATX

Техническо описание

Connectors

Atx 24-pin: 1, atx12v 4+4 pin / eps12v 8-pin: 2, pcie 6+2 pin: 6, sata: 10, peripheral: 4, atx 20+4 pin: 600 mm, atx 12v 4+4 pin: 700 mm, eps12v 8-pin: 600 mm, pcie 6+2 pin: 550 + 120 mm, sata: 400+150+150+150 mm - 650+150mm, peripheral: 400+150+150+150 m

DC Output

3.3v: 22a, 5v: 22a, 3.3v and 5v combined: 120w, 12v: 63.3a, -12v: 0.3a, +5vsb: 3a, total power: 760w

Safety and Environmental

Erp 2013 (-lt0.45w @230. vac, 45 ma load on +5vsb),ce, fcc, tuv, ctuvus, eac, rcm, ccc, bsmi, cb, kc+kcc

Fan Information

140 mm fdb bearing fractal design dynamic series fan

AC Input

Input voltage: 100-240v c, input frequency: 50-60 hz, input current: 10a/5a

Features

Over voltage protection, under voltage protection, overpower protection, short circuit protection, over current protection, over temperature protection

Dimensions

150 x 150 x 86 mm

Cable Information

Modular 24-pin cable: black ultraflex wires in braided sleeve other modular cables: flat black ultraflex wires
