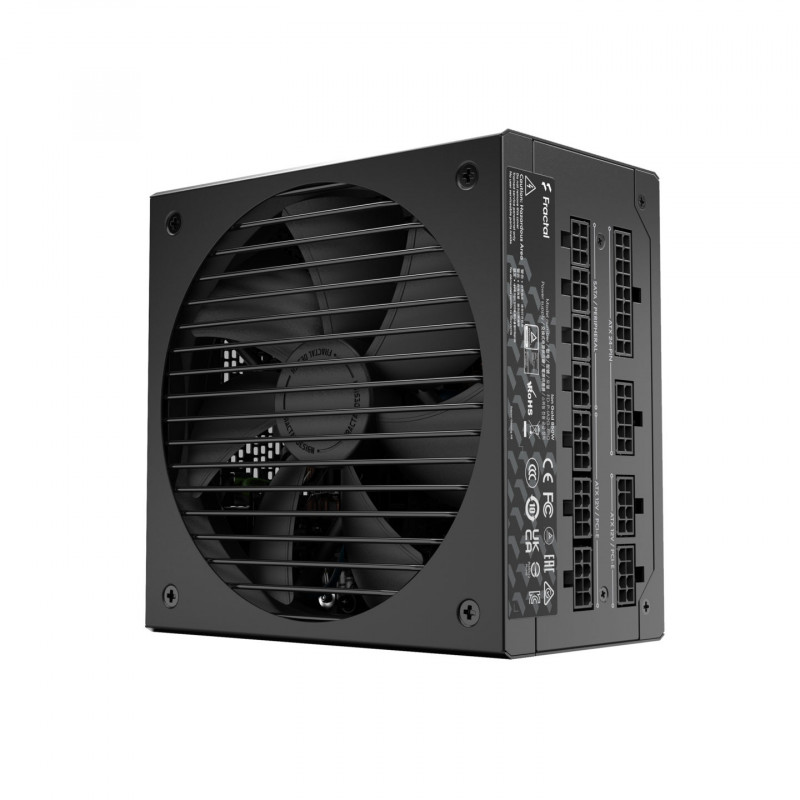

PSU FD ION GOLD 850W ATX

Техническо описание

Features

Over voltage protection, under voltage protection, over-power protection, short circuit protection, over current protection, over temperature protection

Dimensions

150 x 150 x 86 mm

Connectors

Atx 24-pin: 1, eps/atx12v: 2, pcie: 6, sata: 8, peripheral: 3, atx 24-pin: 500, atx 12v 4+4 pin: 600, eps12v 8-pin: 600, pcie 6+2 pin: 550+150, sata: 500+150+150+150, peripheral: 500+150+150

DC Output

3.3v: 22a, 5v: 22a, 3.3v and 5v combined: 120w, 12v: 70.8a, -12v: 0.3a, +5vsb: 3a, total power: 850w

AC Input

Input voltage: 100-240v ac, input frequency: 50-60 hz, input current: 10a/5a

Fan Information

140 mm lls bearing fractal design dynamic series fan

Cable Information

Modular 24-pin cable: black wires in braided sleeve, other modular cables: flat black wires

Safety and Environmental

Erp 2013 (-lt0.45w @ 230 vac, 45ma load on +5vsb),ce, fcc, kcc, tuv, ctuvus, eac, rcm, ccc, bsmi, cb, rohs, weee
