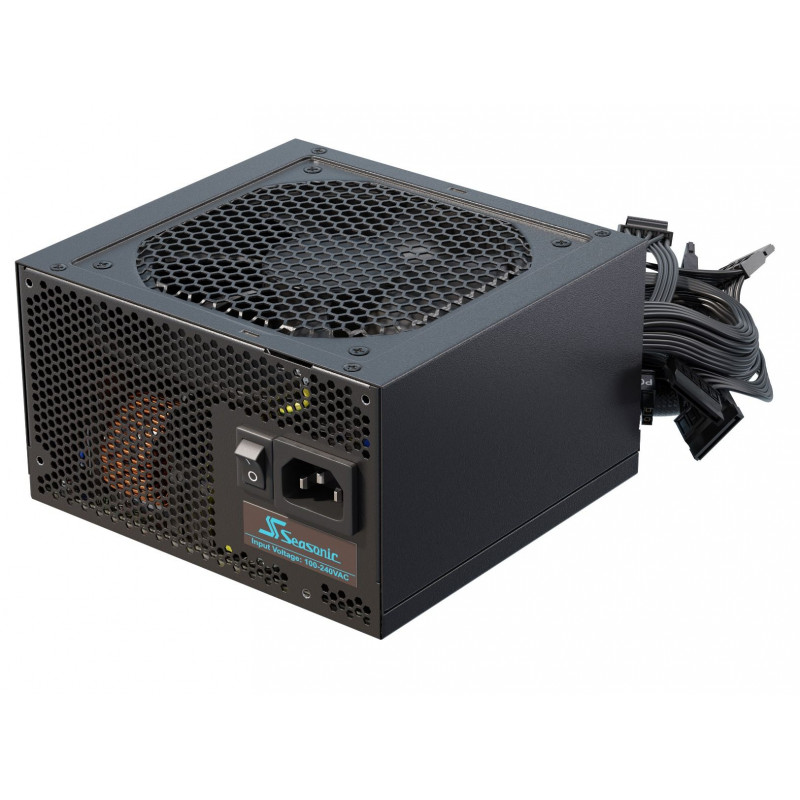

PSU SEASONIC G12 GC-650 GOLD

Техническо описание

Features

Operating temperature:0 - 50 c (derating from 100 - to 80 - from 40 c to 50 c), mtbf @ 25 c, excl. fan :100,000 hours, ac input:full range, protection:opp, ovp, ocp, scp

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

Connectors

Mb (24/20 pins)-1-550-1, cpu-650 cpu (8/4 pins)-1-600-1, pcie (8/6 pins)-2-700-2, pcie (8/6 pins)-1-750-0, sata-4-810-0, sata-4-860-0, sata-4-760 -0, sata-3-690-1, sata-2-700-0, sata-2-600-0, sata-2-470-0, sata-2-450-0, molex-3 -690-1, molex-2 -470-0, mol

DC Output

Rail:+3.3 v/+5 v/+12 v/-12 v/+5 vsb, maximum power:15 a/15 a /54 a/0.3 a/2.5 a 100 w/648 w/3.6 w/12.5 w, total continuous power:650 w

AC Input

Voltage: 100 v - 240 v, current: 10 a max., frequency: 50 hz - 60 hz

Fan Information

Fan size:12:0 mm, fan control:smart and silent fan control, fan bearing:sleeve bearing, life expectancy :25,000 hours at 40 c, 15 - - 65 - rh

Cable Information

Modularity:Fixed cables, Cable type:Flat black cables

Safety and Environmental

Safety and EMC:cTUVus, TUV, CB, CCC, BSMI, CE, FCC, Environmental Compliance:Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Form factor

Intel ATX 12 V
